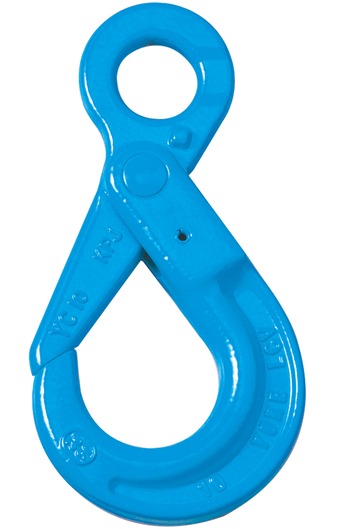

Yoke X-025 G100 Eye Self Locking Hook

More From This Brand

Add to New List

• Product Info

• Yoke X-025 G100 Eye Self Locking Hook

  To suit G100 Chain from 7mm to 26mm diameter

  Capacities from 2.5tonne to 26.5tonne

  Fully certified

  Main features:-

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10
  • Certified by DGUV GS-OA-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke X-025 G100 Eye Self Locking Hook to suit 10mm G100 Chain (4tonne) (Net Weight Per Item: 1.50kg):

  Quantity:

  1 - 1

  (£46.14 inc VAT)

  Quantity:

  2 - 3

  (£45.45 inc VAT)

  Quantity:

  4 - 7

  (£44.99 inc VAT)

  Quantity:

  8+

  (£44.53 inc VAT)
  Yoke X-025 G100 Eye Self Locking Hook to suit 13mm G100 Chain (6.7tonne) (Net Weight Per Item: 3.00kg):

  Quantity:

  1 - 1

  (£75.30 inc VAT)

  Quantity:

  2 - 3

  (£74.17 inc VAT)

  Quantity:

  4 - 7

  (£73.42 inc VAT)

  Quantity:

  8+

  (£72.66 inc VAT)
  Yoke X-025 G100 Eye Self Locking Hook to suit 16mm G100 Chain (10tonne) (Net Weight Per Item: 5.80kg):

  Quantity:

  1 - 1

  (£139.14 inc VAT)

  Quantity:

  2 - 3

  (£137.05 inc VAT)

  Quantity:

  4 - 7

  (£135.66 inc VAT)

  Quantity:

  8+

  (£134.27 inc VAT)
  Yoke X-025 G100 Eye Self Locking Hook to suit 20mm G100 Chain (16tonne) (Net Weight Per Item: 10.00kg):

  Quantity:

  1 - 1

  (£254.22 inc VAT)

  Quantity:

  2 - 3

  (£250.41 inc VAT)

  Quantity:

  4 - 7

  (£247.86 inc VAT)

  Quantity:

  8+

  (£245.32 inc VAT)
  Yoke X-025 G100 Eye Self Locking Hook to suit 22mm G100 Chain (19tonne) (Net Weight Per Item: 12.50kg):

  Quantity:

  1 - 1

  (£394.74 inc VAT)

  Quantity:

  2 - 3

  (£388.82 inc VAT)

  Quantity:

  4 - 7

  (£384.87 inc VAT)

  Quantity:

  8+

  (£380.92 inc VAT)
  Yoke X-025 G100 Eye Self Locking Hook to suit 26mm G100 Chain (26.5tonne) (Net Weight Per Item: 15.00kg):

  Quantity:

  1 - 1

  (£755.98 inc VAT)

  Quantity:

  2 - 3

  (£744.64 inc VAT)

  Quantity:

  4 - 7

  (£737.08 inc VAT)

  Quantity:

  8+

  (£729.52 inc VAT)
  Yoke X-025 G100 Eye Self Locking Hook to suit 7/8mm G100 Chain (2.5tonne) (Net Weight Per Item: 0.80kg):

  Quantity:

  1 - 1

  (£38.10 inc VAT)

  Quantity:

  2 - 3

  (£37.53 inc VAT)

  Quantity:

  4 - 7

  (£37.15 inc VAT)

  Quantity:

  8+

  (£36.77 inc VAT)
