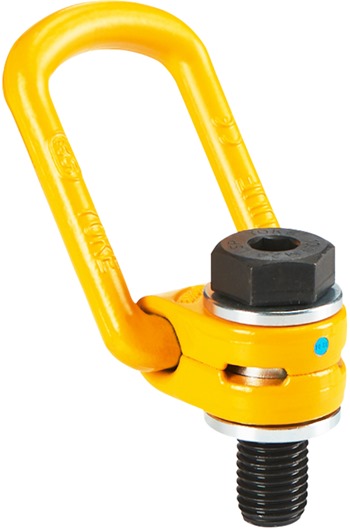

Yoke Swivel Lifting Point Type 212 UNC Thread

More From This Brand

Add to New List

• Product Info

• Yoke Swivel Lifting Point Type 212 UNC Thread

  • Rotates through 360° and pivot 90°
  • Manufactured from alloy steel, quenched and tempered
  • Manufactured and tested in accordance with EN 1677-1
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread (ASME / ANSI B18.3.1M)
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 1.5 times the WLL
  • Design Factor 4 : 1
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required
  • Available in thread sizes from 1/2" to 1-1/2"

  Lifting Point uses can be as follows:-

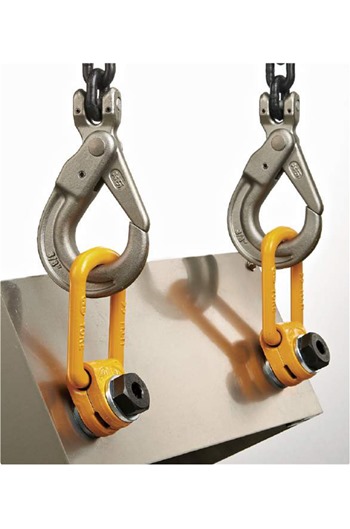

  • Suited for lifting objects with no obvious attachment points
  • Mold and die handling
  • Pump and valve handling
  • Ideal for lashing attachment points
  • Suitable for attachment to lifting beams and spreader beams

  Please see attached data sheet for dimensions and loading chart



• Price Breaks
• Yoke 1" 4t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 1.40kg):

  Quantity:

  1 - 1

  (£86.94 inc VAT)

  Quantity:

  2 - 3

  (£85.64 inc VAT)

  Quantity:

  4 - 7

  (£84.77 inc VAT)

  Quantity:

  8+

  (£83.90 inc VAT)
  Yoke 1/2" 1t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 0.50kg):

  Quantity:

  1 - 1

  (£63.54 inc VAT)

  Quantity:

  2 - 3

  (£62.59 inc VAT)

  Quantity:

  4 - 7

  (£61.95 inc VAT)

  Quantity:

  8+

  (£61.32 inc VAT)
  Yoke 1-1/2" 8t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 5.80kg):

  Quantity:

  1 - 1

  (£309.54 inc VAT)

  Quantity:

  2 - 3

  (£304.90 inc VAT)

  Quantity:

  4 - 7

  (£301.80 inc VAT)

  Quantity:

  8+

  (£298.71 inc VAT)
  Yoke 1-1/4" 5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 3.10kg):

  Quantity:

  1 - 1

  (£166.50 inc VAT)

  Quantity:

  2 - 3

  (£164.00 inc VAT)

  Quantity:

  4 - 7

  (£162.34 inc VAT)

  Quantity:

  8+

  (£160.67 inc VAT)
  Yoke 3/4" 2.5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 1.30kg):

  Quantity:

  1 - 1

  (£85.14 inc VAT)

  Quantity:

  2 - 3

  (£83.86 inc VAT)

  Quantity:

  4 - 7

  (£83.01 inc VAT)

  Quantity:

  8+

  (£82.16 inc VAT)
  Yoke 5/8" 1.5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 0.50kg):

  Quantity:

  1 - 1

  (£70.50 inc VAT)

  Quantity:

  2 - 3

  (£69.44 inc VAT)

  Quantity:

  4 - 7

  (£68.74 inc VAT)

  Quantity:

  8+

  (£68.03 inc VAT)
  Yoke 7/8" 2.5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 1.30kg):

  Quantity:

  1 - 1

  (£86.38 inc VAT)

  Quantity:

  2 - 3

  (£85.08 inc VAT)

  Quantity:

  4 - 7

  (£84.22 inc VAT)

  Quantity:

  8+

  (£83.35 inc VAT)
