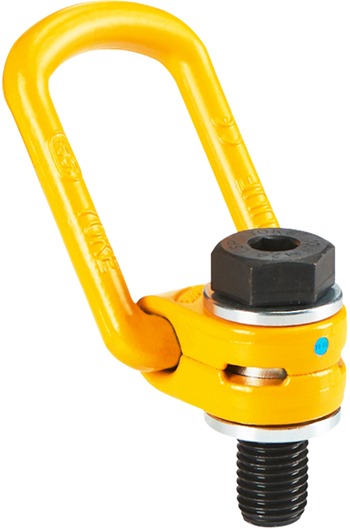

Yoke Swivel Lifting Point Type 211 Metric Thread

More From This Brand

Add to New List

• Product Info

• Yoke Swivel Lifting Point Type 211 Metric Thread

  • Rotates through 360° and pivots 90°
  • Manufactured from alloy steel, quenched and tempered
  • Manufactured and tested in accordance with EN1677-1
  • Certified by DGUV GS-OA 15-04
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread (ASME / ANSI B18.3.1M)
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 1.5 times the WLL
  • Design Factor 4 : 1
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required
  • Available in thread sizes from M8 to M48

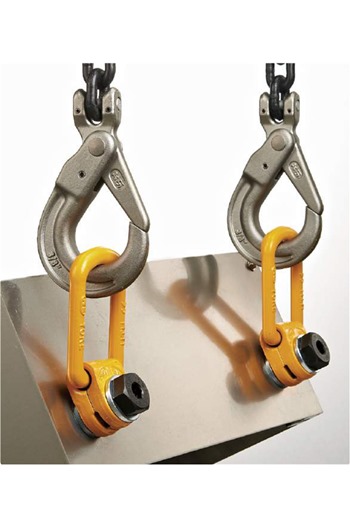

  Lifting Point uses can be as follows:-

  • Suited for lifting objects with no obvious attachment points
  • Mold and die handling
  • Pump and valve handling
  • Ideal for lashing attachment points
  • Suitable for attachment to lifting beams and spreader beams

  Please see attached data sheets for dimensions and loading chart



• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke M10 0.63t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 0.30kg):

  Quantity:

  1 - 1

  (£52.78 inc VAT)

  Quantity:

  2 - 3

  (£51.98 inc VAT)

  Quantity:

  4 - 7

  (£51.46 inc VAT)

  Quantity:

  8+

  (£50.93 inc VAT)
  Yoke M12 1t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 0.50kg):

  Quantity:

  1 - 1

  (£56.38 inc VAT)

  Quantity:

  2 - 3

  (£55.53 inc VAT)

  Quantity:

  4 - 7

  (£54.97 inc VAT)

  Quantity:

  8+

  (£54.40 inc VAT)
  Yoke M16 1.5t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 0.50kg):

  Quantity:

  1 - 1

  (£62.70 inc VAT)

  Quantity:

  2 - 3

  (£61.76 inc VAT)

  Quantity:

  4 - 7

  (£61.13 inc VAT)

  Quantity:

  8+

  (£60.51 inc VAT)
  Yoke M20 2.5t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 1.30kg):

  Quantity:

  1 - 1

  (£75.30 inc VAT)

  Quantity:

  2 - 3

  (£74.17 inc VAT)

  Quantity:

  4 - 7

  (£73.42 inc VAT)

  Quantity:

  8+

  (£72.66 inc VAT)
  Yoke M24 4t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 1.40kg):

  Quantity:

  1 - 1

  (£77.70 inc VAT)

  Quantity:

  2 - 3

  (£76.53 inc VAT)

  Quantity:

  4 - 7

  (£75.76 inc VAT)

  Quantity:

  8+

  (£74.98 inc VAT)
  Yoke M30 5t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 3.10kg):

  Quantity:

  1 - 1

  (£140.38 inc VAT)

  Quantity:

  2 - 3

  (£138.27 inc VAT)

  Quantity:

  4 - 7

  (£136.87 inc VAT)

  Quantity:

  8+

  (£135.46 inc VAT)
  Yoke M36 8t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 5.80kg):

  Quantity:

  1 - 1

  (£270.90 inc VAT)

  Quantity:

  2 - 3

  (£266.84 inc VAT)

  Quantity:

  4 - 7

  (£264.13 inc VAT)

  Quantity:

  8+

  (£261.42 inc VAT)
  Yoke M42 10t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 6.30kg):

  Quantity:

  1 - 1

  (£314.10 inc VAT)

  Quantity:

  2 - 3

  (£309.39 inc VAT)

  Quantity:

  4 - 7

  (£306.25 inc VAT)

  Quantity:

  8+

  (£303.11 inc VAT)
  Yoke M42 15t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 10.90kg):

  Quantity:

  1 - 1

  (£407.94 inc VAT)

  Quantity:

  2 - 3

  (£401.82 inc VAT)

  Quantity:

  4 - 7

  (£397.74 inc VAT)

  Quantity:

  8+

  (£393.66 inc VAT)
  Yoke M48 20t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 11.60kg):

  Quantity:

  1 - 1

  (£440.38 inc VAT)

  Quantity:

  2 - 3

  (£433.77 inc VAT)

  Quantity:

  4 - 7

  (£429.37 inc VAT)

  Quantity:

  8+

  (£424.96 inc VAT)
  Yoke M8 0.3t Swivel Lifting Point Type 211 Metric Thread (Net Weight Per Item: 0.20kg):

  Quantity:

  1 - 1

  (£50.38 inc VAT)

  Quantity:

  2 - 3

  (£49.62 inc VAT)

  Quantity:

  4 - 7

  (£49.12 inc VAT)

  Quantity:

  8+

  (£48.61 inc VAT)
