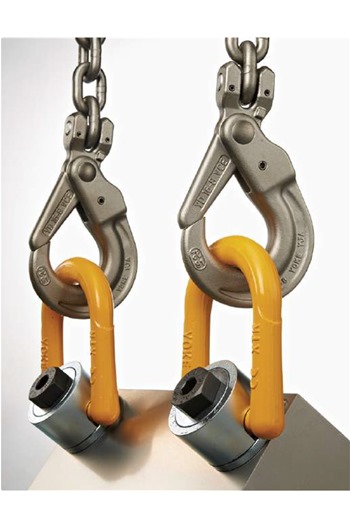

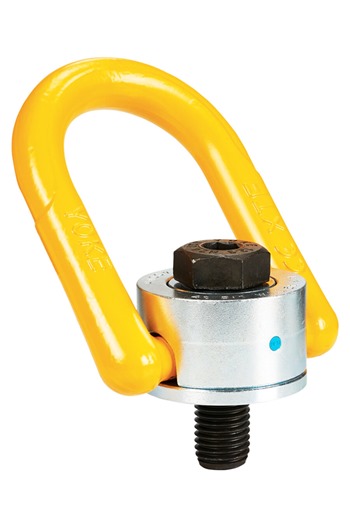

Yoke Swivel Hoist Ring Type 231 Metric Thread
- Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction
- Manufactured from forged alloy steel, quenched and tempered and tested in accordance with EN1677-1
- Load rated parts are 100% magnaflux crack detected & the individual forged parts & cap screw are traceable to Test Certification
- Bolts are Metric thread 10.9
- Proof tested to 2.5 times the WLL and Fatigue rated to 1.5 times the WLL
- Design Factor 4 : 1
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
- Quick and simple assembly, just a tapped hole is required
- Available in thread sizes from M8 to M64
Swivel Hoist Ring uses can be as follows:-
- New generation swivel hoist ring
- Lower profile and higher weight
- Suited for lifting objects with no obvious attachment points
- Mold and die handling
- Pump and valve handling
Please see attached data sheet for dimensions and loading chart
Yoke M10 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 0.30kg):
Yoke M12 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 0.30kg):
Yoke M16 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 0.90kg):
Yoke M20 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 1.00kg):
Yoke M24 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 2.60kg):
Yoke M30 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 5.00kg):
Yoke M36 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 9.60kg):
Yoke M42 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 10.90kg):
Yoke M48 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 11.60kg):
Yoke M56 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 15.00kg):
Yoke M64 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 16.30kg):
Yoke M8 Swivel Hoist Ring Type 231 Metric Thread (Net Weight Per Item: 0.30kg):
