Yoke 8-251 Super Point Swivel Lifting Point Metric Thread

Product Code: YOKE-8-251

Leave a review

More From This Brand

Product Info

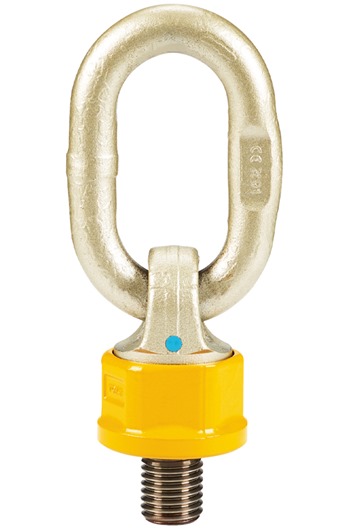

Yoke 8-251 Super Point Swivel Lifting Point - Metric Thread

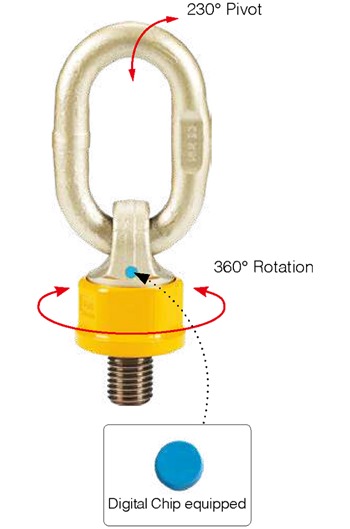

- Pivots to 230°, rotates through 360° due to its unique ball bearing design
- Manufactured from forged alloy steel, quenched and tempered
- Tested in accordance with EN1677-4
- All YOKE Lifting points meet or Certified by DGUV GS-OA-15-04
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts and batch code links to Test Certificate sheet
- Bolts are Metric thread
- Proof tested to 2.5 times the WLL
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
- Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point
- Capable of rotating under load. Do not turn continuously in 90 degree direction at full load
- With the new WLL tables you can find the right Super Point attachment for your application and by the yellow marking on both sides you can measure disposal stage of the Super Point
- Available in thread size M8 to M48
- See attached data sheet for loading chart
Specifications
Additional Info
Additional Information
Data Sheet
Price Breaks
Yoke 8-251 Super Point Swivel Lifting Point M10 x 18mm (Net Weight Per Item: 0.40kg):
Quantity:
1 - 1
(£65.98 inc VAT)
Quantity:
2 - 3
(£64.99 inc VAT)
Quantity:
4 - 7
(£64.33 inc VAT)
Quantity:
8+
(£63.67 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M12 x 18mm (Net Weight Per Item: 0.40kg):
Quantity:
1 - 1
(£67.74 inc VAT)
Quantity:
2 - 3
(£66.72 inc VAT)
Quantity:
4 - 7
(£66.05 inc VAT)
Quantity:
8+
(£65.37 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M12 x 25mm (Net Weight Per Item: 0.40kg):
Quantity:
1 - 1
(£70.62 inc VAT)
Quantity:
2 - 3
(£69.56 inc VAT)
Quantity:
4 - 7
(£68.85 inc VAT)
Quantity:
8+
(£68.15 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M14 x 20mm (Net Weight Per Item: 0.40kg):
Quantity:
1 - 1
(£76.78 inc VAT)

Quantity:
2 - 3
(£75.62 inc VAT)
Quantity:
4 - 7
(£74.86 inc VAT)
Quantity:
8+
(£74.09 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M16 x 20mm (Net Weight Per Item: 0.44kg):
Quantity:
1 - 1
(£70.20 inc VAT)
Quantity:
2 - 3
(£69.15 inc VAT)
Quantity:
4 - 7
(£68.45 inc VAT)
Quantity:
8+
(£67.74 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M16 x 24mm (Net Weight Per Item: 0.50kg):
Quantity:
1 - 1
(£70.98 inc VAT)
Quantity:
2 - 3
(£69.92 inc VAT)
Quantity:
4 - 7
(£69.21 inc VAT)
Quantity:
8+
(£68.50 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M16 x 30mm (Net Weight Per Item: 0.50kg):
Quantity:
1 - 1
(£71.82 inc VAT)

Quantity:
2 - 3
(£70.74 inc VAT)
Quantity:
4 - 7
(£70.02 inc VAT)
Quantity:
8+
(£69.31 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M20 x 30mm (Net Weight Per Item: 1.00kg):
Quantity:
1 - 1
(£79.26 inc VAT)
Quantity:
2 - 3
(£78.07 inc VAT)
Quantity:
4 - 7
(£77.28 inc VAT)
Quantity:
8+
(£76.49 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M20 x 40mm (Net Weight Per Item: 1.00kg):
Quantity:
1 - 1
(£91.74 inc VAT)
Quantity:
2 - 3
(£90.36 inc VAT)
Quantity:
4 - 7
(£89.45 inc VAT)
Quantity:
8+
(£88.53 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M20 x 50mm (Net Weight Per Item: 1.10kg):
Quantity:
1 - 1
(£93.30 inc VAT)
Quantity:
2 - 3
(£91.90 inc VAT)
Quantity:
4 - 7
(£90.97 inc VAT)
Quantity:
8+
(£90.03 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M20 x 70mm (Net Weight Per Item: 1.10kg):
Quantity:
1 - 1
(£94.14 inc VAT)
Quantity:
2 - 3
(£92.73 inc VAT)
Quantity:
4 - 7
(£91.79 inc VAT)
Quantity:
8+
(£90.85 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M24 x 30mm (Net Weight Per Item: 1.50kg):
Quantity:
1 - 1
(£100.02 inc VAT)
Quantity:
2 - 3
(£98.52 inc VAT)
Quantity:
4 - 7
(£97.52 inc VAT)
Quantity:
8+
(£96.52 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M24 x 45mm (Net Weight Per Item: 1.50kg):
Quantity:
1 - 1
(£116.58 inc VAT)

Quantity:
2 - 3
(£114.83 inc VAT)
Quantity:
4 - 7
(£113.67 inc VAT)
Quantity:
8+
(£112.50 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M24 x 50mm (Net Weight Per Item: 1.50kg):
Quantity:
1 - 1
(£124.02 inc VAT)
Quantity:
2 - 3
(£122.16 inc VAT)
Quantity:
4 - 7
(£120.92 inc VAT)
Quantity:
8+
(£119.68 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M30 x 35mm (Net Weight Per Item: 2.40kg):
Quantity:
1 - 1
(£118.98 inc VAT)
Quantity:
2 - 3
(£117.20 inc VAT)
Quantity:
4 - 7
(£116.01 inc VAT)
Quantity:
8+
(£114.82 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M30 x 45mm (Net Weight Per Item: 2.40kg):
Quantity:
1 - 1
(£127.26 inc VAT)

Quantity:
2 - 3
(£125.35 inc VAT)
Quantity:
4 - 7
(£124.08 inc VAT)
Quantity:
8+
(£122.81 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M30 x 60mm (Net Weight Per Item: 2.50kg):
Quantity:
1 - 1
(£183.58 inc VAT)
Quantity:
2 - 3
(£180.82 inc VAT)
Quantity:
4 - 7
(£178.99 inc VAT)
Quantity:
8+
(£177.15 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M36 x 50mm (Net Weight Per Item: 3.80kg):
Quantity:
1 - 1
(£167.10 inc VAT)
Quantity:
2 - 3
(£164.59 inc VAT)
Quantity:
4 - 7
(£162.92 inc VAT)
Quantity:
8+
(£161.25 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M42 x 50mm (Net Weight Per Item: 3.90kg):
Quantity:
1 - 1
(£239.94 inc VAT)

Quantity:
2 - 3
(£236.34 inc VAT)
Quantity:
4 - 7
(£233.94 inc VAT)
Quantity:
8+
(£231.54 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M42 x 63mm (Net Weight Per Item: 4.00kg):
Quantity:
1 - 1
(£243.18 inc VAT)
Quantity:
2 - 3
(£239.53 inc VAT)
Quantity:
4 - 7
(£237.10 inc VAT)
Quantity:
8+
(£234.67 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M48 x 60mm (Net Weight Per Item: 7.60kg):
Quantity:
1 - 1
(£503.94 inc VAT)
Quantity:
2 - 3
(£496.38 inc VAT)
Quantity:
4 - 7
(£491.34 inc VAT)
Quantity:
8+
(£486.30 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M48 x 72mm (Net Weight Per Item: 7.70kg):
Quantity:
1 - 1
(£506.58 inc VAT)

Quantity:
2 - 3
(£506.58 inc VAT)
Quantity:
4 - 7
(£506.58 inc VAT)
Quantity:
8+
(£506.58 inc VAT)
Yoke 8-251 Super Point Swivel Lifting Point M8 x 12mm (Net Weight Per Item: 0.30kg):
Quantity:
1 - 1
(£53.98 inc VAT)
Quantity:
2 - 3
(£53.17 inc VAT)
Quantity:
4 - 7
(£52.63 inc VAT)
Quantity:
8+
(£52.09 inc VAT)
