Yale YBF Series Spring Balancers 1-100kg

More From This Brand

Add to New List

• Product Info

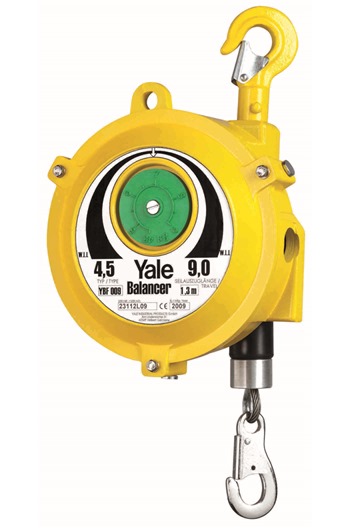

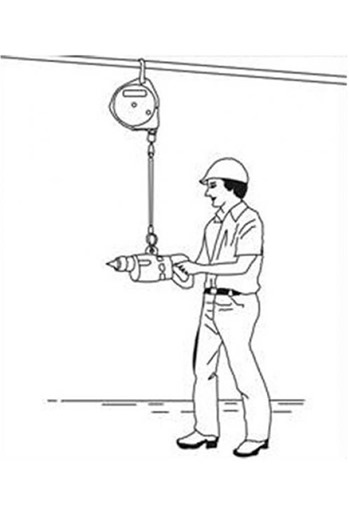

• The Yale YBF Spring Balancer allows the worker to mover suspended tools or objects up or down with very little effort.  Depending on the spring adjustment, the object will remain in position or retract when no force is applied

  With a spiral groove on a tapered drum, the winding radius is increased to match the torque build-up of the spring, thus neutralising it and achieving a balanced condition.  This is the main difference between Spring Balancers and retractors

  Retractors are designed to retract the cable when no force is applied.  An amount of downward force must be continually applied to keep the suspended object as it's extended position.  The torque output of the rewind spring increases as the cable is extended, and retracting the suspended object to the uppermost adjusted position when released

  The YBF series enclosed body design ensures operator safety, no trapped fingers or hands.  It also has an anti-wear feature that prevents damage to the aluminium housing and can be replaced without dismantling the housing.  Wire replacement can be done without dismantling the body. The containerised spring catridge enables safe and simple servicing

  Capacities from 1kg to 100kg available

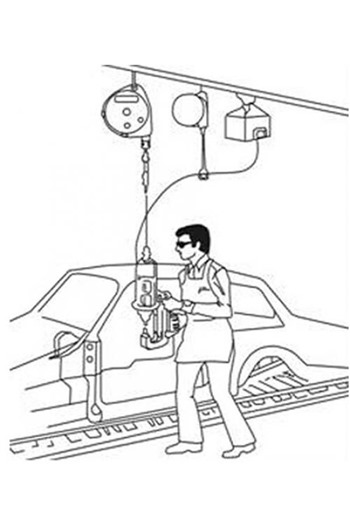

  Possible applications include:-

  • Resistance spot welding machines
  • Measuring machines
  • Compressed air equipment
  • X-ray apparatus
  • Power tools (electric driven)
  • Welding machines
  • Welding templates
  • Paint spraying appartus
  • Cages





• Specifications
• Additional Info
  Additional Information

  Operating InstructionsProduct information
• Price Breaks
• Yale 1.5-3kg Spring Balancer 1.3mtr Lift (Net Weight Per Item: 1.80kg):

  Quantity:

  1+

  (£119.68 inc VAT)
  Yale 1-2kg Spring Balancer 1mtr Lift (Net Weight Per Item: 1.00kg):

  Quantity:

  1+

  (£99.23 inc VAT)
  Yale 15-22kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 8.00kg):

  Quantity:

  1+

  (£424.01 inc VAT)
  Yale 2.5-5kg Spring Balancer 1.3mtr Lift (Net Weight Per Item: 1.90kg):

  Quantity:

  1+

  (£123.53 inc VAT)
  Yale 22-30kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 9.00kg):

  Quantity:

  1+

  (£567.01 inc VAT)
  Yale 30-40kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 10.50kg):

  Quantity:

  1+

  (£722.69 inc VAT)
  Yale 4.5-9kg Spring Balancer 1.3mtr Lift (Net Weight Per Item: 4.00kg):

  Quantity:

  1+

  (£256.76 inc VAT)
  Yale 40-50kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 11.00kg):

  Quantity:

  1+

  (£738.76 inc VAT)
  Yale 50-60kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 12.00kg):

  Quantity:

  1+

  (£756.70 inc VAT)
  Yale 60-70kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 12.50kg):

  Quantity:

  1+

  (£805.31 inc VAT)
  Yale 70-85kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 13.00kg):

  Quantity:

  1+

  (£1,003.74 inc VAT)
  Yale 85-100kg Spring Balancer 1.5mtr Lift (Net Weight Per Item: 13.50kg):

  Quantity:

  1+

  (£1,023.83 inc VAT)
  Yale 9-15kg Spring Balancer 1.3mtr Lift (Net Weight Per Item: 4.00kg):

  Quantity:

  1+

  (£272.35 inc VAT)
