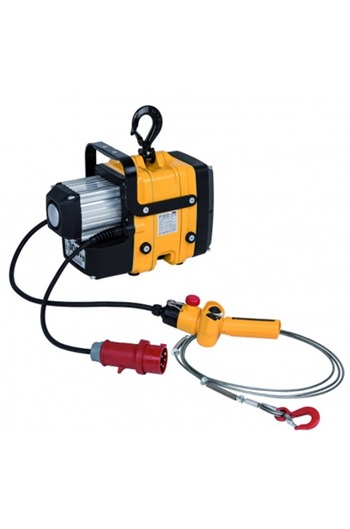

YALE Mtrac 100kg 'MINI' ENDLESS WINCH
The Yale Mtrac endless Winch combines state-of-the-art industrial design with technical innovation to solve a specific customer need - the need for a safe and simple handling solution for mobile applications
Because the rope of the endless Winch is not collected during operation, there is no limit to the lifting height and traction length when using this product. And, with a full offering of wire ropes and accessories, this Winch can be used in virtually any application requiring a Hoist
The Mtrac endless Winch features a unique bi-directional actuator that allows the Winch to move the rated load on both ends of the rope. A hook can be fitted on the unloaded rope end (please contact us for a price for the bi-directional hook conversion kit) thus eliminating no-load motions. How does it work? Once the load has reached the top position, the unloaded rope end with other hook is automatically in the bottom position and a new load can be picked up immediately. The lifting frequency is doubled as the two falls can be evenly loaded alternately with the rated load
The Mtrac is also compact and lightweight for easy transport with it's ergonomic, built-in carrying handle
The Winch's lifting capacity can be doubled up by means of a Reeving Kit (please contact us for a price as sold separately)
Specifications:-
Model: YMT1-30
Capacity: 100kg single fall (standard), 200kg double fall (optional)
Lifting speed: 30mtrs/min single fall (standard), 15mtrs/min double fall (optional)
Operating voltage: 400v 3Ph 50Hz
Rope lengths available: 10mtr, 20mtr, 30mtr, 40mtr, 50mtr, 60mtr, 80mtr, 100mtr & 150mtr
Wire rope diameter: 6.5mm
Control cable length: 2.3mtr (longer lengths available - please contact us)
Power cable length: 1mtr (longer lengths available - please contact us)
DELIVERY IS 3 WEEKS FROM DATE OF ORDER
