WS15H 1500kg Light Duty Fully Electric Stacker 3000mm Lift

More From This Brand

Add to New List

• Product Info

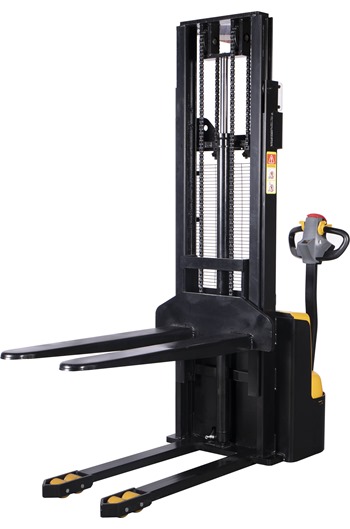

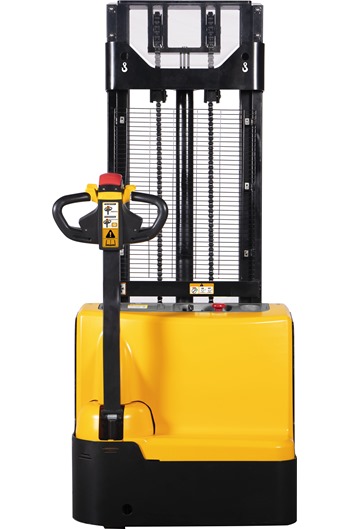

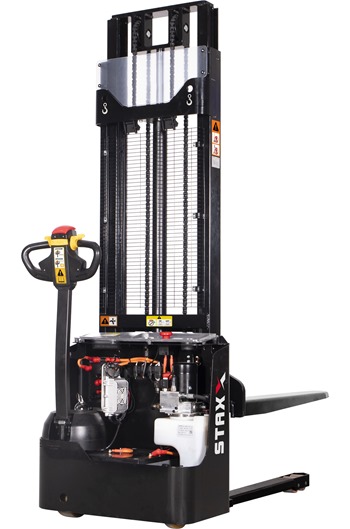

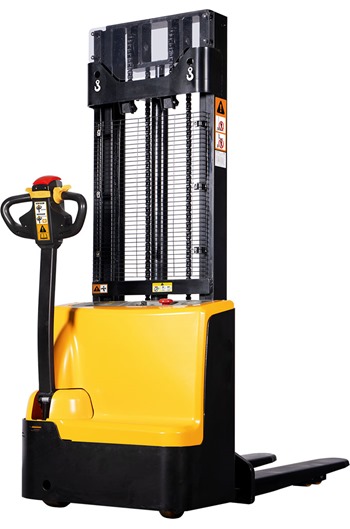

• The WS15H is a compact, electrically powered stacker designed for light-duty warehouse operations, providing a 3000mm lifting height via its duplex mast. Its design facilitates easy maneuvering in various warehouse settings, and it's optimized for Euro pallet handling.

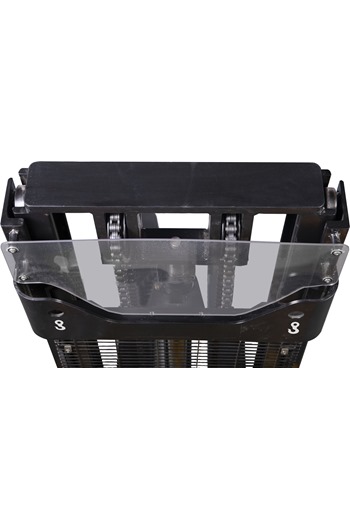

  For user convenience, it includes an integrated charger and offers approximately three hours of continuous operation on a full battery. Safety is enhanced by a perspex protection screen. Notably, this stacker is intended for use on level surfaces and is not suitable for cold storage environments.

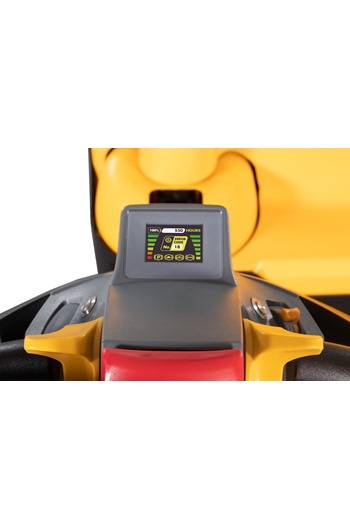

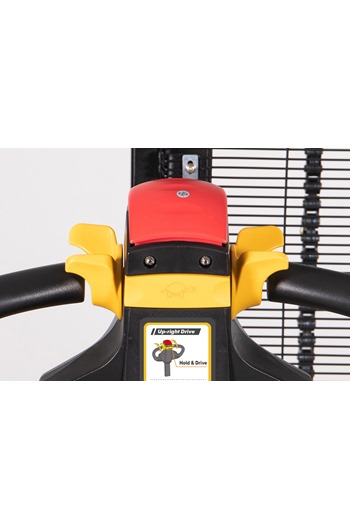

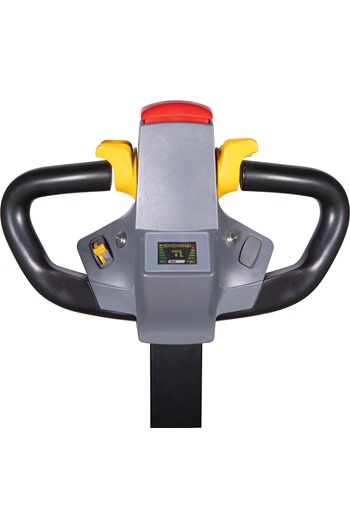

  A modern, multifunctional handle provides operators with real-time information, including recharging alerts, fault code displays, and battery power levels.


  Key Features

  ---

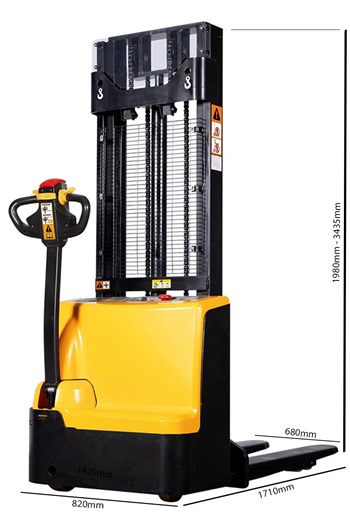

  • Lowered mast height: 1980mm
  • Lifting height: 3000mm
  • Extended mast height: 3435mm
  • Height (lowered): 90mm
  • Overall length: 1710mm
  • Overall fork width: 680mm
  • Overall width: 820mm
  • Fork dimensions: 70x160x1150mm
  • Aisle width for pallets (1000x1200mm): 1997mm
  • Aisle width for pallets (800x1200mm): 1952mm
  • Minimum turning radius: 1490mm
  • Travelling speed (laden): 4km/h
  • Travelling speed (unladen): 4.5km/h
  • Lifting speed (laden): 0-87mm/s
  • Lifting speed (unladed): 0-130mm/s
  • Built in 240v charger
  • Battery charge time: 7hrs
  • Battery: 12V/71Ah x2
  • Charging time: 7 Hours
  • Warranty: 12 months
  • Weight: 570kg
• Specifications
• Additional Info
  Additional Information

  Data SheetInstruction Manual
• Price Breaks
• WS15H 1500kg Light Duty Fully Electric Stacker 3000mm Lift (Net Weight Per Item: 570.00kg):

  Quantity:

  1+

  (£2,579.98 inc VAT)
