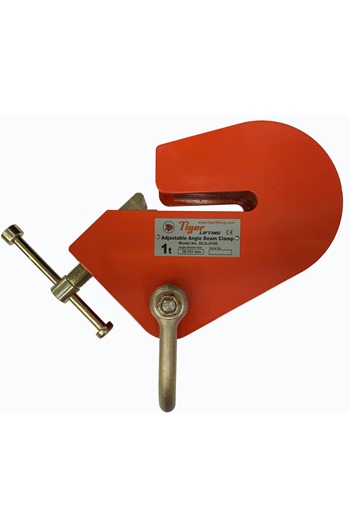

Tiger BCA 1tonne Adjustable Angle Beam Clamp

More From This Brand

Add to New List

• Product Info

• Tiger BCA 1tonne Adjustable Angle Beam Clamp

  This BCA Clamp serves as an anchor or lifting point when attached to an overhead steel angle section approved for lifting applications. This clamp can be used up to a maximum of 15° from the vertical

  These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991

  Capacity: 1tonne

  Angle section size: 38-101mm

  Weight: 5.5kg

  Main features:-

  • Quick and versatile rigging point for hoisting equipment when attached to overhead steel angle section approved for lifting applications
  • Shackle suspension point
  • V shaped clamping jaws ensures safe and secure grip
  • Designed to accommodate a wide range of steel angle sections
  • No tools required – integrated adjusting screw spindle
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Tiger BCA 1tonne Adjustable Angle Beam Clamp (Net Weight Per Item: 5.50kg):

  Quantity:

  1 - 1

  (£156.90 inc VAT)

  Quantity:

  2 - 3

  (£153.61 inc VAT)

  Quantity:

  4+

  (£150.94 inc VAT)
