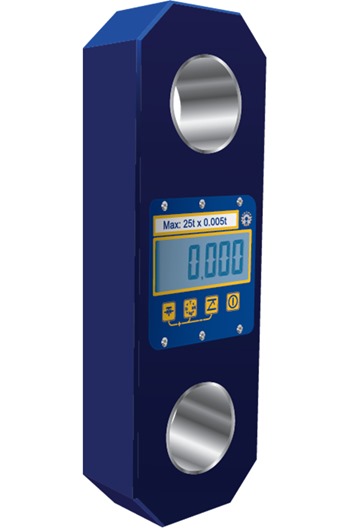

Straightpoint Loadlink Plus

More From This Brand

Add to New List

• Product Info

• Straightpoint Loadlink Plus

  Known worldwide as the original electronic force measurement device to feature an integral display, the Loadlink plus has been in production since 1979. Over the years, the line has been expanded and it is now used on a daily basis for load monitoring and heavy lifts. These can range in capacity from 1t to 300t, and are used by a variety of industrial and commercial industries including manufacturing, transportation, agriculture, oil and gas, utilities, aerospace and clean energy

  This latest version of the well-known product has advanced features and benefits, providing solutions for today’s complicated load test and force monitoring needs. The Loadlink plus features full function push button controls for tare, choice of units (lbs, kg, kN and tonnes), peak hold, preset tare, audible set-point alarm and an overload counter

  The advanced microprocessor-based electronics provide the Loadlink plus with high speed read rates, extreme resistance to industrial level noise and unprecedented stability. This high stability gives the Loadlink plus over 5,000 divisions and the highest standard resolution of any digital dynamometer on the market today. Constructed of high-grade aircraft quality aluminium, Straightpoint’s advanced internal design structure allows the product to once again top the charts with an unmatched weight to strength ratio. Straightpoint’s link style dynamometers are on average 30% lighter than their closest competitor with the same safety rating

  Available from 1tonne to 300tonne (please contact for delivery times for capacities over 100tonne)

  We can supply Shackles to suit - please contact us for details

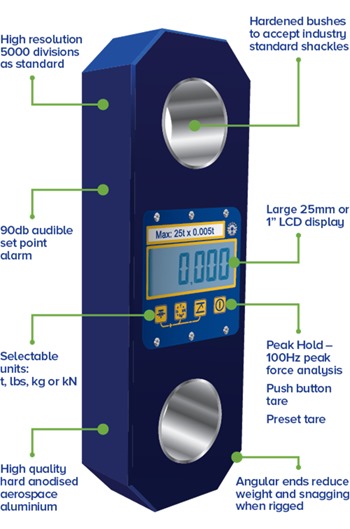

  Features and benefits:-

  • Easy to read LCD display and push button control
  • RS485 port for optional connection of HHP Handheld Plus (HHP sold separately)
  • Large 25mm or 1” LCD display
  • High accuracy
  • Selectable units te, lbs, kN & kg
  • High resolution
  • 100Hz Peak hold
  • Push button tare
  • Light weight
  • Preset tare
  • Overload counter
  • 90db Audible set point alarm
  • RS-485 serial output
  • Design validated by F.E.A.
  • 2-year warranty
  • DNV-GL Type Approval
  • Complies with ASME B30.26



• Specifications
• Additional Info
  Additional Information

  Data SheetInstruction Manual
• Price Breaks
• Straightpoint Loadlink Plus LLP100T 100tonne (Net Weight Per Item: 34.00kg):

  Quantity:

  1+

  (£7,160.10 inc VAT)
  Straightpoint Loadlink Plus LLP12T 12tonne (Net Weight Per Item: 3.70kg):

  Quantity:

  1+

  (£1,940.22 inc VAT)
  Straightpoint Loadlink Plus LLP150T 150tonne (Net Weight Per Item: 46.00kg):

  Quantity:

  1+

  (£9,352.78 inc VAT)
  Straightpoint Loadlink Plus LLP1T 1tonne (Net Weight Per Item: 1.50kg):

  Quantity:

  1+

  (£1,631.94 inc VAT)
  Straightpoint Loadlink Plus LLP200T 200tonne (Net Weight Per Item: 82.00kg):

  Quantity:

  1+

  (£13,072.50 inc VAT)
  Straightpoint Loadlink Plus LLP250T 250tonne (Net Weight Per Item: 82.00kg):

  Quantity:

  1+

  (£13,343.98 inc VAT)
  Straightpoint Loadlink Plus LLP25T 25tonne (Net Weight Per Item: 5.00kg):

  Quantity:

  1+

  (£2,123.94 inc VAT)
  Straightpoint Loadlink Plus LLP2T5 2.5tonne (Net Weight Per Item: 1.50kg):

  Quantity:

  1+

  (£1,649.82 inc VAT)
  Straightpoint Loadlink Plus LLP300T 300tonne (Net Weight Per Item: 118.00kg):

  Quantity:

  1+

  (£19,577.70 inc VAT)
  Straightpoint Loadlink Plus LLP35T 35tonne (Net Weight Per Item: 8.60kg):

  Quantity:

  1+

  (£2,669.94 inc VAT)
  Straightpoint Loadlink Plus LLP55T 55tonne (Net Weight Per Item: 13.00kg):

  Quantity:

  1+

  (£3,086.34 inc VAT)
  Straightpoint Loadlink Plus LLP6T5 6.5tonne (Net Weight Per Item: 2.40kg):

  Quantity:

  1+

  (£1,742.70 inc VAT)
  Straightpoint Loadlink Plus LLP75T 75tonne (Net Weight Per Item: 16.00kg):

  Quantity:

  1+

  (£3,494.70 inc VAT)
