• Straightpoint Loadblock Plus

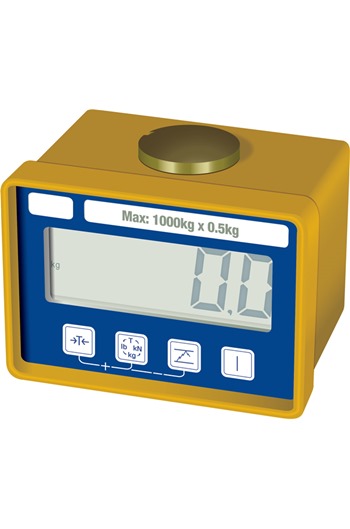

  The Loadblock plus is a low capacity, self-indicating compression load cell, used in many testing and load monitoring applications worldwide

  The integral display eliminates the need for a separate display or cable assembly that can be easily damaged. Applications include the measurement of loads associated with the testing of hydraulic presses, cylinders or jacks

  This latest version of Straightpoint’s Loadblock has advanced features and benefits that provide solutions for today’s complicated load test, as well as force monitoring needs. Features include full function push button controls for tare, units of measure (lbs, kg, kN and tonnes), peak hold, pre-set tare, audible set-point alarm and an overload counter

  This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events. Should this occur, the load cell in question can be removed from service immediately, following the calibration-voiding overload event. It can then be sent out for proper testing and, if necessary, a recalibration can be done before it re-enters service

  The advanced microprocessor based electronics provide the Loadblock plus with high speed read rates (500/sec), extreme resistance to industrial level noise and unprecedented stability

  This high stability provides the Loadblock plus with 5,000+ divisions and the highest standard resolution of any self-indicating compression load cell on the market today

  The unit also features a RS-485 serial output port allowing for remote viewing with either the Handheld plus digital display/controller or Windows PC desktop controller data logging software

  Available in 250kg to 5000kg

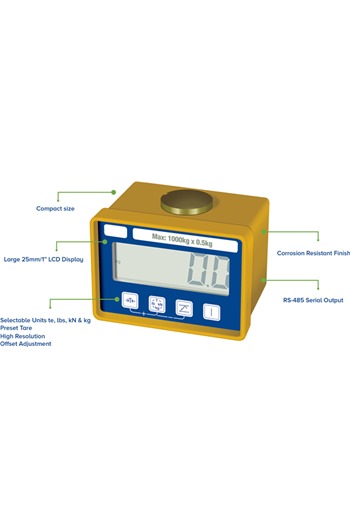

  Features and benefits:-

  • Large 25mm or 1” LCD Display
  • High resolution
  • 100Hz Peak hold
  • Compact size
  • Push button tare
  • Preset tare
  • RS485 port for connection to datalogging system
  • Selectable units te, lbs, kN and kg

• Specifications
• Additional Info
  Additional Information

  Data SheetInstruction Manual
• Price Breaks
• Straightpoint Loadblock Plus LBP1T 1000kg (Net Weight Per Item: 0.90kg):

  Quantity:

  1+

  (£1,420.02 inc VAT)
  Straightpoint Loadblock Plus LBP250KG 250kg (Net Weight Per Item: 0.90kg):

  Quantity:

  1+

  (£1,403.98 inc VAT)
  Straightpoint Loadblock Plus LBP2T 2000kg (Net Weight Per Item: 1.50kg):

  Quantity:

  1+

  (£1,559.98 inc VAT)
  Straightpoint Loadblock Plus LBP500KG 500kg (Net Weight Per Item: 0.90kg):

  Quantity:

  1+

  (£1,403.98 inc VAT)
  Straightpoint Loadblock Plus LBP5T 5000kg (Net Weight Per Item: 3.10kg):

  Quantity:

  1+

  (£1,667.98 inc VAT)
