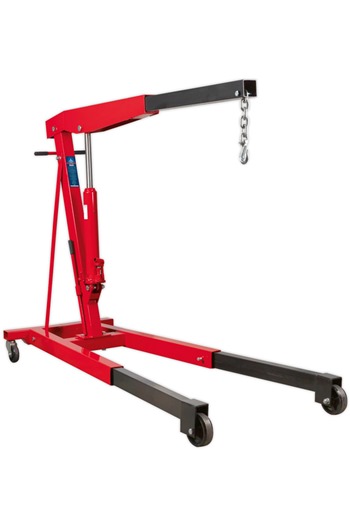

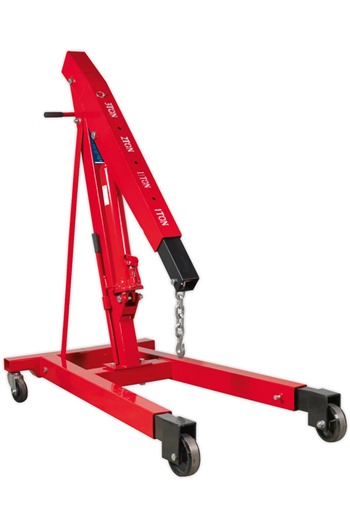

• Sealey PH30 3tonne Fixed Frame Engine Crane with Extendable Legs

  Lifts 3000kg at 1200mm jib extension

  Heavy-duty castors

  Perfect for heavy commercial, industrial and workshop use

  Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions

  Pump access from side for safe handling of heavy loads

  Delivered in knock-down form for reduced freight cost

  Some self-assembly required

  This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery

  Model: PH30

  Height jib down: 16100mm

  Height of frame: 195mm

  Length: 1940mm*

  Rear width: 780mm

  Width front frame: 855mm*

  Width insert front frame: 700mm*

  Length of jib position 1: 1200mm

  Length of jib position 2: 1400mm

  Length of jib position 3: 1610mm

  Length of jib position 4: 1820mm

  Lifting capacity in position 1: 3000kg

  Lifting capacity in position 2: 2000kg

  Lifting capacity in position 3: 1500kg

  Lifting capacity in position 4: 1000kg

  Max lifting height at jib position 1: 1880mm

  Max lifting height at jib position 2: 1970mm

  Max lifting height at jib position 3: 2010mm

  Max lifting height at jib position 4: 2220mm

  Weight: 155kg

  Note: *Legs Extended



• Specifications
• Additional Info
  Additional Information

  Instruction ManualParts Breakdown
• Price Breaks
• Sealey PH30 3tonne Fixed Frame Engine Crane with Extendable Legs (Net Weight Per Item: 155.00kg):

  Quantity:

  1+

  (£869.94 inc VAT)
