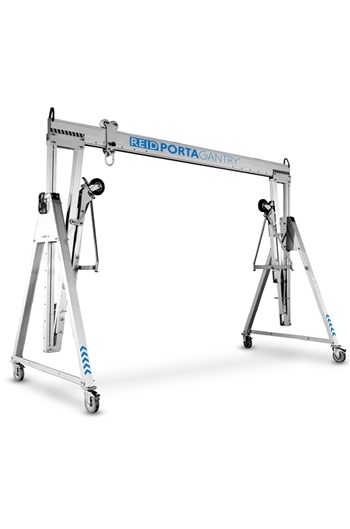

Reid Lifting 5000kg PortaGantry

More From This Brand

Add to New List

• Product Info

• Reid Lifting 5000kg PortaGantry

  Our top quality and highly durable PORTAGANTRY is lightweight and extremely strong. This portable lifting system can be manually assembled, using just four bolts and can safely lift to 5000kg, making it ideal for multiple applications

  This system offers an overhead anchor point for multiple users for fall protection, whilst also providing great versatility for lifting materials. Our PORTAGANTRY range is highly customisable to meet your specific needs, with a variety of A-frame height configurations and beam lengths available

  Available with beam lengths from 2.5mtr to 5.5mtr (overall beam length, not working span - see data sheet for dimensions)

  Available in 2 frame sizes Intermediate & Tall

  Height adjustment: 200mm increments

  Supplied with Masterlink Trolley

  Key features:-

  • EN795:2012 & ATEX certified
  • Can support goods and personnel lifting
  • Suitable for up to 5 persons for fall protection applications
  • Personnel capacity up to 2500kg
  • Goods capacity up to 5000kg
  • Beams and A-Frames can be interchanged
  • Ergonomic 360° swivel-locking castors as standard
  • Ease of assembly including height and span adjustment
  • Height adjustment: 200mm increments
  • Anodised for increased corrosion resistance

  ​*** Set up tools not included ***

  Dimensions can be viewed in the product data sheet.

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• 5000kg PortaGantry 2181-3181mm c/w 2.5mtr Beam & Masterlink Trolley (Net Weight Per Item: 247.50kg):

  Quantity:

  1+

  (£10,201.09 inc VAT)
  5000kg PortaGantry 2181-3181mm c/w 3.92mtr Beam & Masterlink Trolley (Net Weight Per Item: 270.00kg):

  Quantity:

  1+

  (£10,108.49 inc VAT)
  5000kg PortaGantry 2181-3181mm c/w 3mtr Beam & Masterlink Trolley (Net Weight Per Item: 256.00kg):

  Quantity:

  1+

  (£10,233.54 inc VAT)
  5000kg PortaGantry 2181-3181mm c/w 4.57mtr Beam & Masterlink Trolley (Net Weight Per Item: 280.00kg):

  Quantity:

  1+

  (£10,429.22 inc VAT)
  5000kg PortaGantry 2181-3181mm c/w 5.5mtr Beam & Masterlink Trolley (Net Weight Per Item: 294.00kg):

  Quantity:

  1+

  (£10,607.94 inc VAT)
  5000kg PortaGantry 2849-4049mm c/w 2.5mtr Beam & Masterlink Trolley (Net Weight Per Item: 267.50kg):

  Quantity:

  1+

  (£11,029.76 inc VAT)
  5000kg PortaGantry 2849-4049mm c/w 3.92mtr Beam & Masterlink Trolley (Net Weight Per Item: 290.00kg):

  Quantity:

  1+

  (£10,881.00 inc VAT)
  5000kg PortaGantry 2849-4049mm c/w 3mtr Beam & Masterlink Trolley (Net Weight Per Item: 276.00kg):

  Quantity:

  1+

  (£11,102.15 inc VAT)
  5000kg PortaGantry 2849-4049mm c/w 4.57mtr Beam & Masterlink Trolley (Net Weight Per Item: 300.00kg):

  Quantity:

  1+

  (£11,257.39 inc VAT)
  5000kg PortaGantry 2849-4049mm c/w 5.5mtr Beam & Masterlink Trolley (Net Weight Per Item: 314.00kg):

  Quantity:

  1+

  (£11,451.59 inc VAT)
