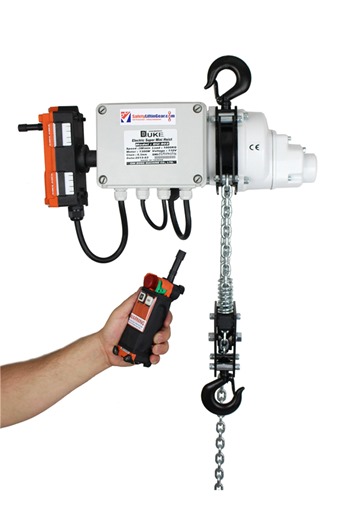

Duke Electric chain hoist
Suitable for Light Industrial Use
240 volt 50 Hz Single phase
Current at rated load (amp): 4
WLL 1 tonne
Heights of lift 3mtr - 20mtr
Speed 2.5 metres per minute
Lightweight and compact single phase hoist
Supplied with:-

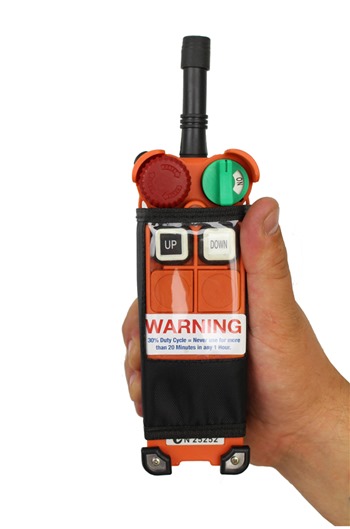

Hoist operated by tough handheld Radio Controller c/w Emergency Stop
Transmitter range = 100mtrs
Frequency range: 418MHz, 433MHZ & 868MH

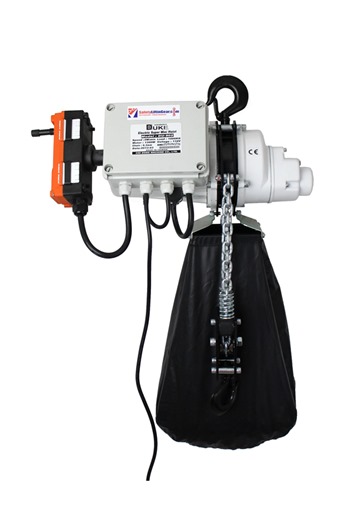

Chainbag
Power supply cable and plug
Swivel top and bottom hooks
Ideal for many lifting applications such as construction,Industrial and rental companies
Heavy duty design and build
The Modular design makes the hoist easy to maintain and in turn provide a long service life
Duty cycle 30% - hoist can be used for 20 minutes maximum continues operation in 1 hour period
The frame and control enclosure provide protection against dust and water ingress plus we also offer a weather protection jacket [available at a small extra cost]
Rating IP54
Power cable length 5mtr
Supplied fully tested and certified
Brand Duke Hoist and Winch
When powering from a generator you will need a 3.9kw Genset
12 months warranty
Closed headroom with hook up 480mm
1 tonne model is on 2 falls of loadchain
