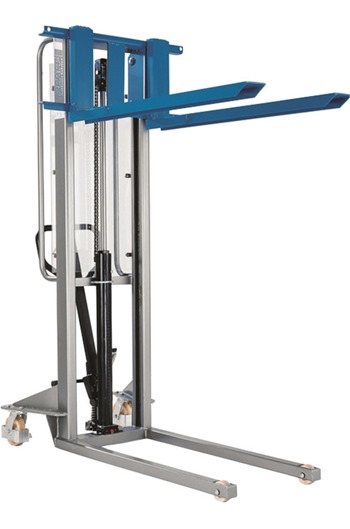

Pfaff HV0516 500kg Hydraulic Hand Stacker 1600mm lift

More From This Brand

Add to New List

• Product Info

• Pfaff HV0516 500kg Hydraulic Hand Stacker 1600mm lift

  The Pfaff HV0516 is a manual drive and manual lifting Hydraulic Hand Stacker

  Ideal for the occasional, internal application of stacking and transporting of palletised goods, loading and unloading of shelves and lorries

  Features:-

  • Ergonomic safety control handle for one-hand operation of lifting, driving and lowering
  • Handlebars for easy operation
  • Lowering speed can be finely metered for sensitive lowering of the load
  • Single-acting hand pump with increased lift per handle stroke
  • Robust mast construction with hard chronium plated piston
  • Steering roller with brake for safe parking of the Stacker

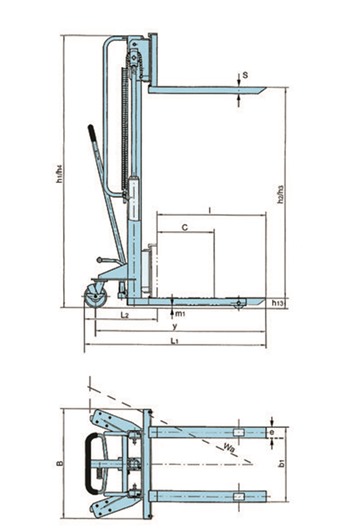

  Model: HV0516

  Lifting capacity: 500kg

  Closed mast height: 2000mm

  Free lift: 1520mm

  Mast height extended: 2000mm

  Fork height (maximum): 1600mm

  Fork height (lowered): 80mm

  Total unit length: 1690mm

  Total unit width: 800mm

  Usuable fork length: 1150mm

  Floor/ground clearance: 25mm

  Lift per one crank rotation with/without load: 40mm

  Turning radius: 1500mm

  Weight: 217kg

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Pfaff HV0516 500kg Hydraulic Hand Stacker 1600mm lift (Net Weight Per Item: 217.00kg):

  Quantity:

  1+

  (£1,235.45 inc VAT)
