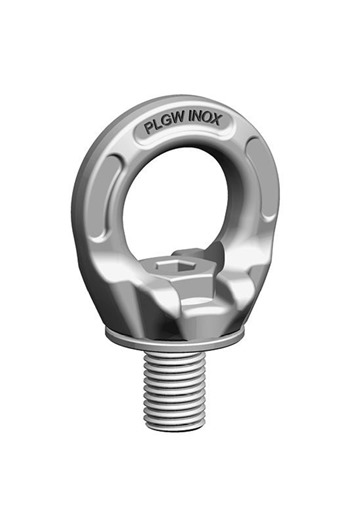

Pewag PLGWI2/B Basic Stainless Steel Lifting Point
The PLGWI is a corrosion resistant stainless steel version of the PLGW eyebolt which offers all the tried-and-tested Pewag advantages: versatility when it comes to areas of application, accurately fitted measurements, optimised load capacities and unsurpassed ease-of-use. But the PLGWI offers even more than that:-
The eyebolt is 360° rotatable, comes with an interchangeable special screw that is 100% crack-tested and marked with the load capacity and the thread size! An integrated sleeve protects the surface of the load. The batch number displayed on all load-bearing parts such as the eye and screws as well as the serial number make identification, traceability and performance of mandatory, regular inspections simpler than ever
This lifting point can be very simply tightened by hand, then aligned in the load direction – a system that is ideally suited for frequent assembly/disassembly applications
However, if the lifting point is to be utilised in a more permanent application and / or is subject to vibrations during use, the torque settings in the load table must be observed
The Pewag PLGWI Basic. Offering the same benefits as the Pewag PLGWI Supreme in terms of measurement, load capacity and application, the Pewag PLGWI Basic differs only when it comes to assembly
This lifting point can be mounted hand tight using a standard Allen key then aligned in the load direction
The Basic version is made exclusively from Duplex, with ring, screw and sleeve manufactured from 1.4462
Each eyebolt comes with an operating manual that contains detailed information on usage as well as a load capacity table categorised by lifting method, number of legs and angle of inclination, for easy reference whenever you need it
Thread size: 20mm
DELIVERY IS 4-5 WEEKS FROM DATE OF ORDER
