Pewag PLAW Prolift Alpha Swivel Lifting Point M10 to M48

More From This Brand

Add to New List

• Product Info

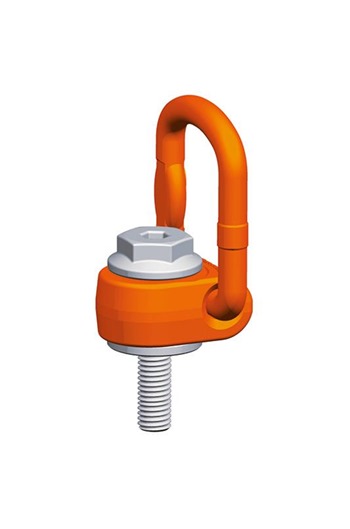

• Pewag PLAW Prolift Alpha Swivel Lifting Point

  The PLAW is a screwable and 360° rotatable lifting and lashing point. The load ring can be loaded to it‘s full capacity throughout a 100° load range and can be positioned at the required angle of load via the patented interchangeable spring clip. The 10.9 grade special hex head bolt is interchangeable and is secured within the body forging. The bolt is 100% crack detection tested and has a VI-free protective coating applied to it in order to protect against corrosion. The head of the load bolt is marked with the lifting point WLL and thread size

  PLAW lifting points have a factor of safety of 4:1 against breakage in all directions within the 100° load range. Each lifting point is marked during manufacture with an individual serial number which gives full product traceability

  All load capacities, categorised by the type of application, the number of legs and angle of inclination, are contained in a table that forms an integral part of the operating manual included with each lifting point

  Metric thread sizes available: M8, M10, M12, M16, M20, M24, M30, M36, M42, M48

  *** Longer threads available - please contact us for details ***

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Pewag PLAW M10 Prolift Alpha Swivel Lifting Point 630kg (Net Weight Per Item: 0.58kg):

  Quantity:

  1+

  (£71.70 inc VAT)
  Pewag PLAW M12 Prolift Alpha Swivel Lifting Point 1000kg (Net Weight Per Item: 0.58kg):

  Quantity:

  1+

  (£71.94 inc VAT)
  Pewag PLAW M16 Prolift Alpha Swivel Lifting Point 1500kg (Net Weight Per Item: 0.62kg):

  Quantity:

  1+

  (£77.70 inc VAT)
  Pewag PLAW M20 Prolift Alpha Swivel Lifting Point 2500kg (Net Weight Per Item: 1.10kg):

  Quantity:

  1+

  (£86.70 inc VAT)
  Pewag PLAW M24 Prolift Alpha Swivel Lifting Point 4000kg (Net Weight Per Item: 1.60kg):

  Quantity:

  1+

  (£101.70 inc VAT)
  Pewag PLAW M30 Prolift Alpha Swivel Lifting Point 6000kg (Net Weight Per Item: 3.10kg):

  Quantity:

  1+

  (£157.62 inc VAT)
  Pewag PLAW M36 Prolift Alpha Swivel Lifting Point 7000kg (Net Weight Per Item: 3.30kg):

  Quantity:

  1+

  (£179.98 inc VAT)
  Pewag PLAW M36 Prolift Alpha Swivel Lifting Point 8000kg (Net Weight Per Item: 6.10kg):

  Quantity:

  1+

  (£274.02 inc VAT)
  Pewag PLAW M42 Prolift Alpha Swivel Lifting Point 10000kg (Net Weight Per Item: 6.40kg):

  Quantity:

  1+

  (£326.46 inc VAT)
  Pewag PLAW M42 Prolift Alpha Swivel Lifting Point 15000kg (Net Weight Per Item: 12.00kg):

  Quantity:

  1+

  (£349.62 inc VAT)
  Pewag PLAW M48 Prolift Alpha Swivel Lifting Point 20000kg (Net Weight Per Item: 12.30kg):

  Quantity:

  1+

  (£425.94 inc VAT)
