High efficiency, ultra-compact progress capture pulley

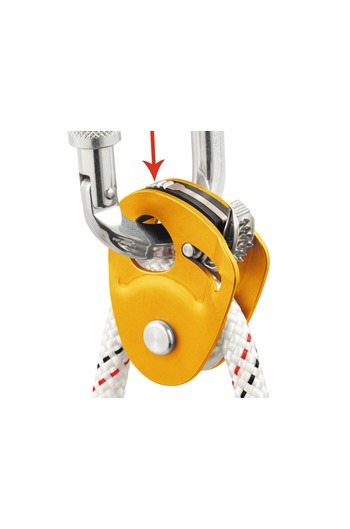

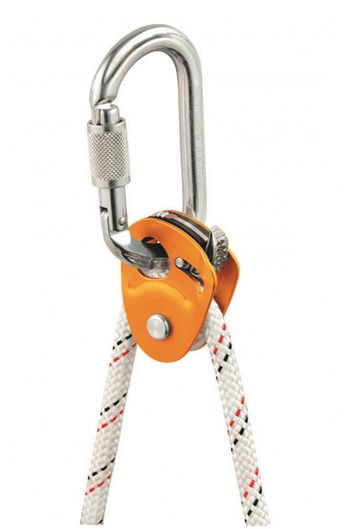

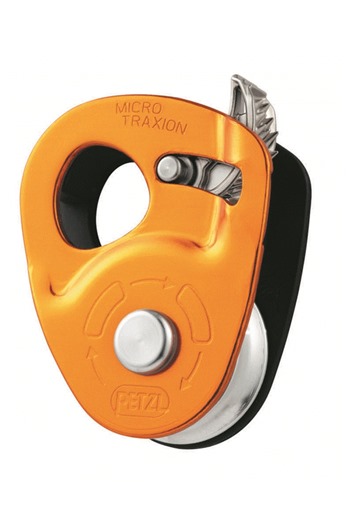

The MICRO TRAXION is an ultra-compact, extremely light progress-capture pulley that is exceptionally efficient. The cam can be locked in open position so the device can be used as a simple pulley
- * Ultra-compact and lightweight
- * Toothed cam with self-cleaning slot optimizes performance under any conditions: frozen or dirty ropes...
- * May be used as simple pulley by locking the cam in the raised position
- * Aluminum sheave mounted on sealed ball bearings for excellent efficiency
- * Rope compatibility: 8 to 11 mm
- * Sheave diameter: 25 mm
- * Ball bearings: yes
- * Efficiency: 91 %
- * Maximum working load - pulley: 2,5 x 2 = 5 kN
- * Maximum working load - rope clamp: 2,5 kN
- * Certification(s): CE EN 567, EAC
- * Weight: 85 g
