Multi-Purpose Tripod & Gantry c/w Lifting Winch

More From This Brand

Add to New List

• Product Info

• TM12 Aluminium Multi-Purpose Tripod & Gantry, Comes With 30mtr or 50mtr Lifting Winch (RUP503-T)

  **Includes**
  Main Tripod, Top Beam & 2 Legged Support.
  1 x Double Trolley (on Beam)
  1 x Single trolley (on Beam)
  1 x 1000kg Alloy Bow Shackle
  1 x RUP503-T 30mtr or 50mtr Lifting Winch c/w Pulley

  Only one pulley supplied, second pulley is additional

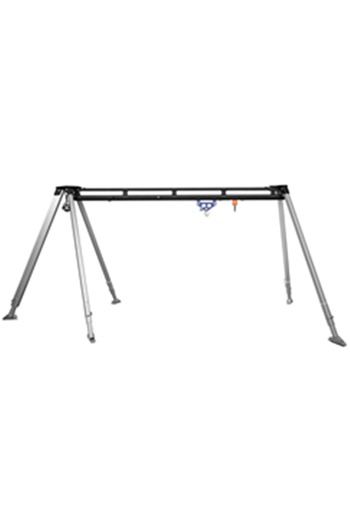

  * Can be used in Complete Form, with Gantry or on its own for Materials Lifting or Lowering of up to 1000kg

  * Lightweight & Portable as the TM12 Breaks Down into 3 Key Components

  *Fully Adjustable In Both Length & Height

  * Gripping Thorns on Tripod Feet for Improved Traction On Slippery Surfaces.

  *Safety Locking Pins to Prevent movement of Beam Trolley

  EN795 Class B

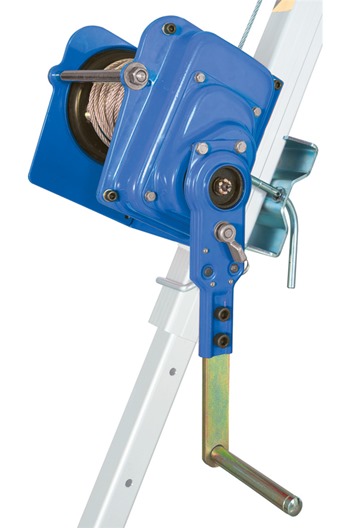

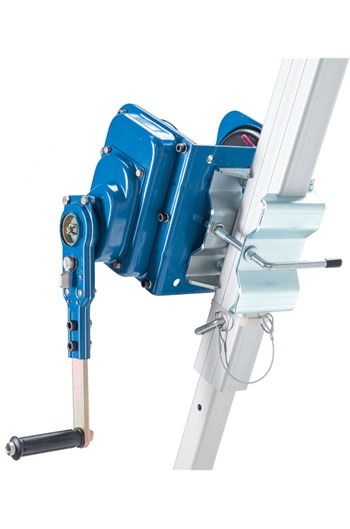

  * Lifting winch available in lengths of 30mtr and 50mtr.
  * 6,3 mm galvanised cable and a braking system
  (EN 1496 Class B)

  TM12 Shipping box dimensions Length 2540mm x width 330mm x height 340mm

• Specifications
• Additional Info
  Additional Information

  RUP503-T Instruction ManualTM12 Instruction Manual 1TM12 Instruction Manual 2TM12 Instruction Manual 3TM12 Instruction Manual 4
• Price Breaks
• 30mtr Lifting Winch & TM12 Tripod (Net Weight Per Item: 78.00kg):

  Quantity:

  1+

  (£2,958.26 inc VAT)
  50mtr Lifting Winch & TM12 Tripod (Net Weight Per Item: 78.00kg):

  Quantity:

  1+

  (£3,004.07 inc VAT)
