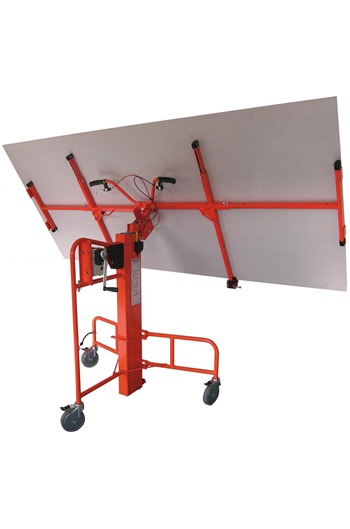

Levpano Combo Plasterboard Lifter 80kg Max Load
Horizontal, Vertical & Angled Fixing - 80kg Max Load
The Levpano range of Board Lifters have been primarily designed for the use of lifting plasterboard or drywall products into position ready to fix at the desired height and angle required
Each model has various features and benefits and dependent on the job in hand with determine which model best suits your needs
The Levpano COMBI allows you to lift and fix Horizontally, Angled and vertically making the COMBI the most versatile Board Lifter in the range
Specifications:-
- Fixing position horizontal: Yes
- Fixing position vertical: Yes
- Fixing position pitched: Yes
- Maximum length of board: 3.2mtrs
- Maximum load capacity: 80kg
- Maximum horizontal lift height with extension bar: 4mtr
- Maximum horizontal lift height without extension bar: 3.6mtr
- Extension bar length: 0.4mtr
- Minimum horizontal load height: 0.68mtr
- Maximum vertical lift height with extension bar: 5.4mtr
- Maximum vertical lift height without extension bar: 5mtr
- Frame weight: 32kg
- Head, beam & arms weight: 17kg
- Wheel diameter: 16cm
- Total number of wheels: 3
- Wheels that lock: 3
- Total weight: 49kg
