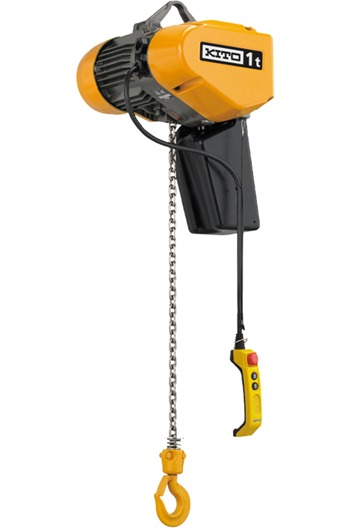

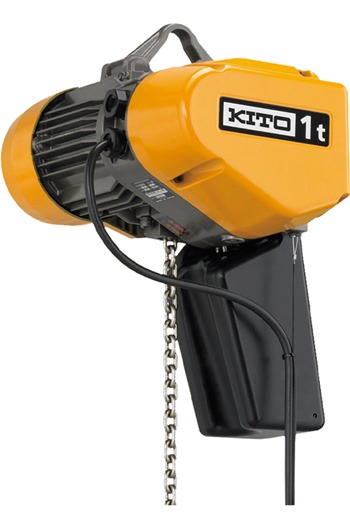

KITO EQ001IS 125kg 3-phase Electric Chain Hoist
The EQ001IS is a 125kg compact and lightweight Electric Chain Hoist from KITO
It's compactness and it's reduced dimensions are some of the special features of KITO's EQ Electric Chain Hoist. The EQ offers in comparison to KITO's ER2 series, a considerable reduction in the net weight by 23%. With the lifting capacities ranging from 250kg to 1000kg the EQ can be used to perform a wide range of tasks. Furthermore a wide variety of suspensions and lifting heights are available
The EQ includes an inverter that provides an industry-first "light load high-speed" function that automatically increases hoist speed to 130% when the load is less than 30% of WLL. As a result, users can expect the production cycle to improve up to 115% of standard. This unique operating characteristic makes the product ideal for assembly line, work station, and repetitive operation applications
These Hoists have a standard hanging suspension. Top Hook suspension is also available (please contact us for details)
Available from 3mtr HOL to 15mtr HOL
*** Please see attached data sheet for lifting speeds ***
Standard features:-
- Frequency inverter (standard speed ratio 6:1)
- 380-440v / 50Hz / 3phase
- Electronic overload limiter
- Extremely robust aluminium die-cast body
- Electromagnetic pull-rotor motor brake
- Heavy-duty fan-cooled motor
- Electronic thermal motor protection prevents overheating
- Hanging suspension
- Upper - lower limit switch
- Counter hour meter
- Ergonomic push button control
- Control voltage 24v DC
- Abrasion-resistant nickel-plated load chain (800N/mm2) in accordance with standard DIN EN818-7
- Plastic chain container
0117 9381 600
DELIVERY IS 4-5 DAYS FROM DATE OF ORDER (Supplied Direct from Manufacturer Partner)
