IKAR DBA3 Rescue Tripod & Recovery Fall Arrest Block Kit

More From This Brand

Add to New List

• Product Info

• IKAR DBA3 Rescue Tripod & Recovery Fall Arrest Block Kit

  This IKAR DBA3 Kit comprises of the DB-A2 Tripod, HRA Fall Arrest Block with Recovery and Tripod Bracket

  Available with 12mtr, 18mtr, 24mtr, 30mtr, 42mtr or 65mtr Fall Arrest Block with Recovery

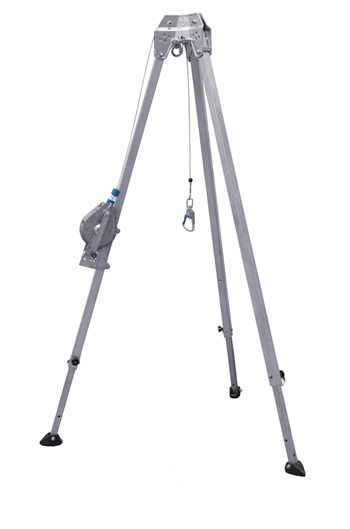

  Tripod spec:-

  • EN795
  • Aluminium construction
  • High functional stability
  • High quality and reliability
  • Load carrying capacity: 2 persons max
  • Foldable rubber feet
  • Corrosion resistant coating
  • Two eye bolts in the head of the tripod
  • Integral pulleys in the head of the tripod, at the top of each leg
  • Stainless steel leg locking pins
  • Mountable accessories available
  • Weight: 24kg

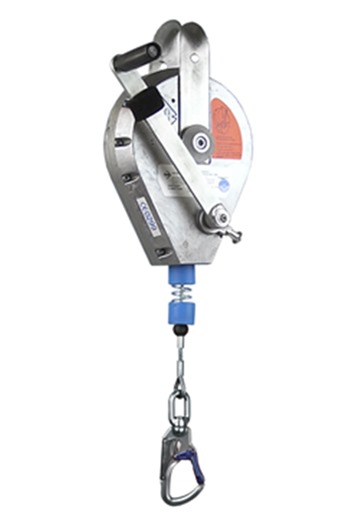

  HRA Fall Arrest Block spec:-

  Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle.  After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety

  • Conforms to EN360
  • Aluminium housing, with a galvanised steel cable lifeline
  • With release pin and two-way winding handle, to engage rescue/recovery mode
  • Fixed handle anchor attachment point
  • Attachment/connection handle or can be fitted to a davit or tripod via a bracket
  • Aluminium double action hook on end of lifeline to EN362



• Specifications
• Additional Info
  Additional Information

  Tripod DOCTripod Dimensions
• Price Breaks
• IKAR DBA3 Rescue Tripod & 12mtr Recovery Fall Arrest Block Kit (Net Weight Per Item: 34.20kg):

  Quantity:

  1+

  (£1,624.78 inc VAT)
  IKAR DBA3 Rescue Tripod & 18mtr Recovery Fall Arrest Block Kit (Net Weight Per Item: 37.40kg):

  Quantity:

  1+

  (£1,694.10 inc VAT)
  IKAR DBA3 Rescue Tripod & 24mtr Recovery Fall Arrest Block Kit (Net Weight Per Item: 41.90kg):

  Quantity:

  1+

  (£1,799.94 inc VAT)
  IKAR DBA3 Rescue Tripod & 30mtr Recovery Fall Arrest Block Kit (Net Weight Per Item: 44.40kg):

  Quantity:

  1+

  (£1,967.10 inc VAT)
  IKAR DBA3 Rescue Tripod & 42mtr Recovery Fall Arrest Block Kit (Net Weight Per Item: 54.60kg):

  Quantity:

  1+

  (£2,345.70 inc VAT)
