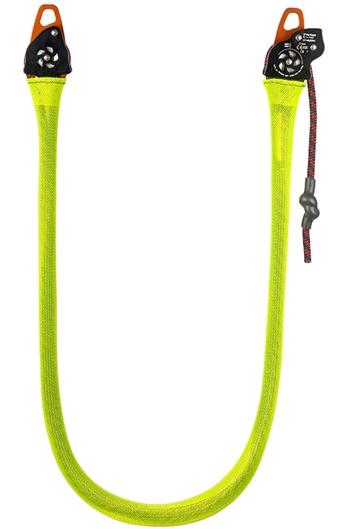

Heightec VANTAGE 5:1 Locking Casualty Pulley
The VANTAGE 5:1 locking pulley is for transferring a casualty onto a rescue system without cutting connections
The pulley is extremely simple and intuitive to operate and offers a strong, light, tangle free method of lifting and transferring a casualty
The cam automatically locks allowing simple and safe rescue procedures to be carried out
The VANTAGE offers 5:1 mechanical advantage if rigged (tail end is attached at the load being lifted)
The woven sheath material is flexible yet highly compressible which prevents snagging and tangling between cord or pulleys, unlike similar products using mesh
The sheath also provides providing cut/abrasion resistance
All components of the VANTAGE 5:1 locking casualty pulley are approved as PPE. Functions as a secure single attachment so there is no need for an additional ‘rated’ connection
Automatic locking allow efficient progress capture during rescue. The cam does not lock open, removing the risk of accidentally releasing the load
8mm cord gives good grip for hauling. 1.5 m length allows full arms length reach without excessive slack
The VANTAGE can be used in a TOWERPACK rescue system, 5:1 mechanical advantage enables rescuer to easily off-weight a casualty onto a rescue system
Lenths available: 1.5mtr and 5mtr
Features:-
- 5:1 mechanical advantage
- Cut resistant sheath
- Cam locks automatically
- 8mm cord
Specifications:-
- Material: Alloy, Stainless steel and nylon
- Loading: 100kg SWL
- Weight: 0.75kg
- Conformity: EN567, EN12278, EN564
