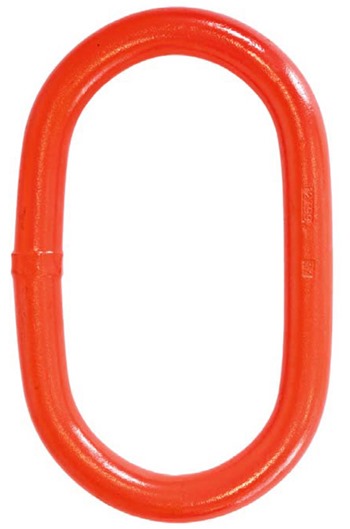

HA Oversized Master Links

More From This Brand

Add to New List

• Product Info

• HA Oversized Master Links

  The HA range of master links and quad assemblies is the most complete range of links available today, in diameters from 16mm up to 120mm and working load limits up to 250 tonnes

  The links are manufactured from triple alloy steel in accordance with EN1677, they are individually proof load tested to 2.5 times working load limit in accordance with EN1677 and they are all supplied with charpy impact values of in excess of 42 Joules at -40°C

  The links are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit

  The HA range of links are widely used in lifting sets for offshore containers and they are type approved to DNV 2.7-1 under approval number TAS000013Z Rev. 2

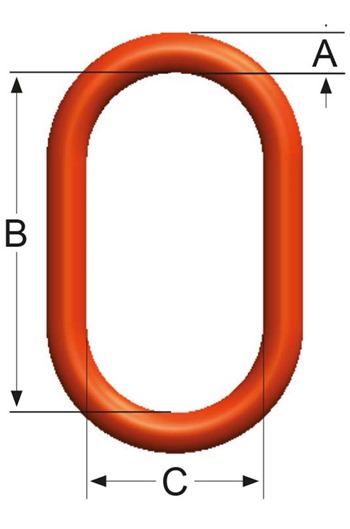

  Please see attached data sheet for loading chart and dimensions



• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• HA16ML Oversized Master Ring 4.1tonne (Net Weight Per Item: 0.68kg):

  Quantity:

  1+

  (£29.00 inc VAT)
  HA22ML Oversized Master Ring 7tonne (Net Weight Per Item: 2.28kg):

  Quantity:

  1+

  (£36.26 inc VAT)
  HA25ML Oversized Master Ring 9.3tonne (Net Weight Per Item: 3.11kg):

  Quantity:

  1+

  (£42.08 inc VAT)
  HA28ML Oversized Master Ring 14.5tonne (Net Weight Per Item: 3.78kg):

  Quantity:

  1+

  (£46.44 inc VAT)
  HA32ML Oversized Master Ring 19tonne (Net Weight Per Item: 5.02kg):

  Quantity:

  1+

  (£58.06 inc VAT)
  HA36ML Oversized Master Ring 26tonne (Net Weight Per Item: 6.46kg):

  Quantity:

  1+

  (£66.76 inc VAT)
  HA40ML Oversized Master Ring 30.5tonne (Net Weight Per Item: 8.46kg):

  Quantity:

  1+

  (£102.82 inc VAT)
  HA45ML Oversized Master Ring 40tonne (Net Weight Per Item: 12.18kg):

  Quantity:

  1+

  (£133.54 inc VAT)
  HA50ML Oversized Master Ring 51tonne (Net Weight Per Item: 16.54kg):

  Quantity:

  1+

  (£190.97 inc VAT)
  HA65ML Oversized Master Ring 75tonne (Net Weight Per Item: 33.02kg):

  Quantity:

  1+

  (£397.98 inc VAT)
  HA75ML Oversized Master Ring 100tonne (Net Weight Per Item: 48.98kg):

  Quantity:

  1+

  (£855.97 inc VAT)
