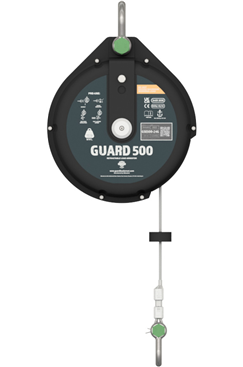

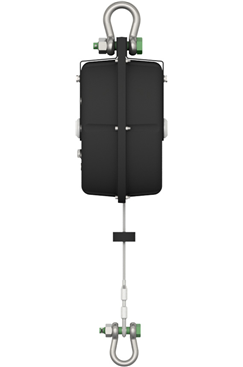

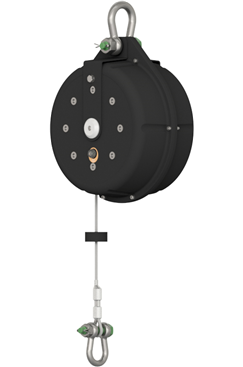

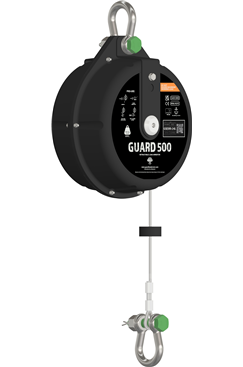

Guard 500kg Load Arrestor 24mtr
Guard load arrestors are heavy-duty fall load arrest blocks for protecting equipment that is suspended at height
Load arrestors provide a secondary safety back-up for overhead loads, used in conjunction with a primary lifting device or support, such as a hoist or fixed anchorage. If the primary support fails, the load arrestor will automatically stop the load from falling, thereby preventing damage to the load and, more importantly, protecting people below
Guard load arrestors have a high-strength retractable rope that extracts and retracts, following the movement of the load. This means Guards can be fitted to equipment that needs to be moved (dynamic loads), as well as to non-moving (static) loads
Guard load arrestors are used extensively in industry, car production lines, material handling & lifting, pillar lifts, theatres, stage production, nuclear power stations, sound systems, chandelier fitting, sports halls, and many more applications
See attached CAD drawing for dimensions
Features:-
- Manufactured in the UK
- 500kg SWL
- Integrated shock absorption minimises damage
- Fall indicator lens for easy monitoring
- High grade galvanised steel rope & shackle (Stainless Steel available)
- Colour: Black
- Model: GUARD500-24G
- Weight: 20kg
- CE certified
- Conforms to European Directive 2006/42/EC
0117 9381 600
DELIVERY IS 2-3 DAYS FROM DATE OF ORDER (Supplied Direct from Manufacturer Partner)
