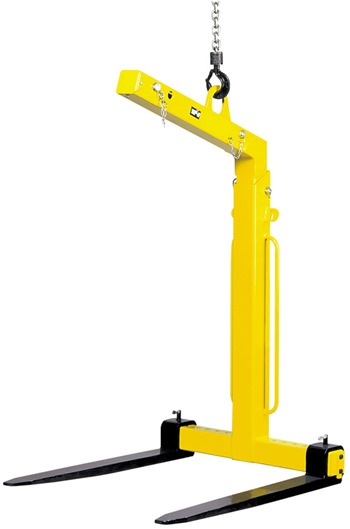

CAMLOK TKG5.0VHS 5000kg Self Weight Balance Crane Forks

More From This Brand

Add to New List

• Product Info

• CAMLOK TKG5.0VHS 5000kg Self Weight Balance Crane Forks

  The TKG-VHS range of Crane Forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system

  Crane Forks with self weight balancing tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines

  The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down

  For efficient operation of this mechanism the load be greater than 20% of the working load limit

  • Factor of safety 4:1
  • Maintenance free
  • Highly visible safety colour
  • For transporting rings or coils, simply push fork tines together
  • Easily adjustable tines for all pallet sizes
  • Supplied with chain for securing the load

  Model: TKG5.0VHS

  WLL: 1000-5000kg

  Adjustment of tines: 500-1000mm

  Useable height: 1300-2000mm

  Length of tines: 1000mm

  Section of tines: 150x60mm

  Overall height: 1710-2410mm

  Weight: 380kg

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• CAMLOK TKG5.0VHS 5000kg Self Weight Balance Crane Forks (Net Weight Per Item: 380.00kg):

  Quantity:

  1+

  (£3,237.19 inc VAT)
