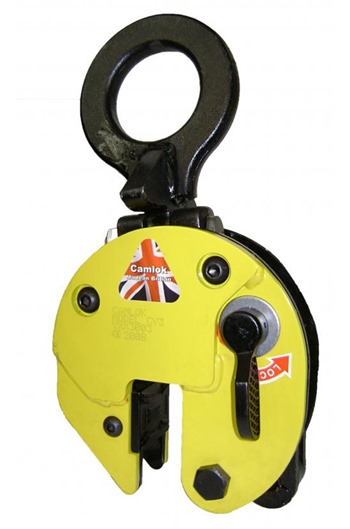

CAMLOK CY1 1000kg 'Hinged' Vertical Plate Clamp

More From This Brand

Add to New List

• Product Info

• CAMLOK CY1 1000kg 'HINGED' Vertical Plate Clamp

  The CY Plate Clamps with hinged hook rings can be used for the safe handling of plate at various angles

  It can lift plate from the horizontal and put it down in the vertical

  The hinged hook ring ensures adequate gripping pressure in every position, but the load capacity reduces (see attached data sheet showing the load/force capacities)

  The main benefit of the CY hinged Plate Clamps is that longer plate can be lifted or handled, using two Clamps on a two legged Chainsling, thus eliminating the need for a spreader beam

  Model: CY1

  WLL: 100-1000kg

  Jaw capacity: 0-20mm

  Weight: 4.6kg

  Fully tested and certified

  See attached data sheet for dimensions

  MADE IN THE UK

  FROM DATE OF ORDER

• Specifications
• Additional Info
  Additional Information

  Data SheetInstructions for Safe Use
