AirDeck Top Clip Fall Arrest Soft Landing Bag
The AirDeck Fall Arrest system comprises of an inner PVC inflatable liner and an outside woven PP protective cover with a durable PVC non-return valve for easy inflation and deflation
Standard top clip Bags are suitable for areas where the outermost bags are supported bu a structure, most usually in house building, this ensures that in the event of a fall the Bags will remain bunched together and the capability of the Bags are maintained
Portability is the key. 50 Bags will fit on just one pallet, which is ideal for transport and storage, and once inflated these 50 Bags will cover an area of 80 m²
The Bags can be rapidly deployed on site, placed in position and buckled top and bottom if required and then inflated, which in itself takes no more than 30-40 seconds per bag
Once inflated AirDeck forms a cushioned surface 750mm from floor level and offers protection from a fall up to 3.25mtrs above the floor level
Odd shapes are easily accommodated simply by pushing a part inflated bag into the gap and then completing the inflation to the normal pressure

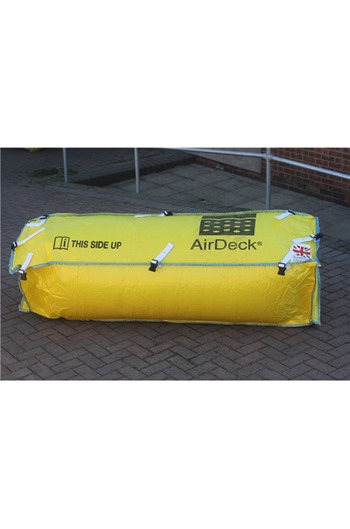

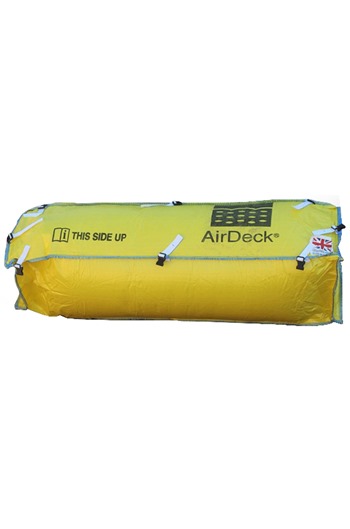

When inflated these Bags are 2100mm x 750mm x 750mm
At the 'valve' end there is a centrally located access flap to give access for inflation/deflation. The flap measures 500mm x 500mm, is sewn into position along the top edge with a Velcro strip fitted on all 3 remaining sides to ensure it will fall shut and 'stick' in the closed position
Access at the opposite end, to draw through and position the inner liner, is through a double overlapping flap (500mm x 400mm). The design gives easy access prior to inflation and yet sites tight closed upon full inflation of the Bag affording the inner liner total protection when the Bag is in use

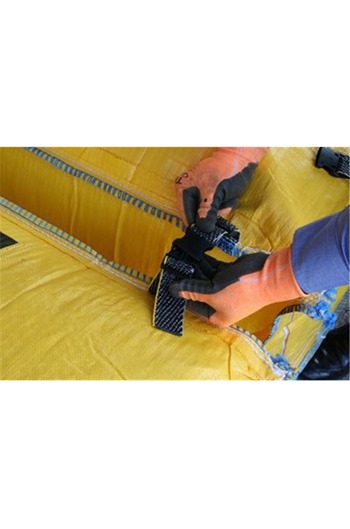

Along each long side there are three 'clickfast' buckles and an additional one at either end, to link to the next AirDeck unit
The inflation valve is a three part valve comprising of a 'seat', a non-return valve and a dust-cap to keep the valve clean and ensure an airtight seal
Replacement liners are available, please contact us for more details
AirDeck products comply to PAS59:2014
These products are supplied by a third party parnter as a result are excluded from our standard returns policy.
To calculate how many Bags needed:- get the total square metreage and divide by 1.6. For example 80m² would need 50 Bags
