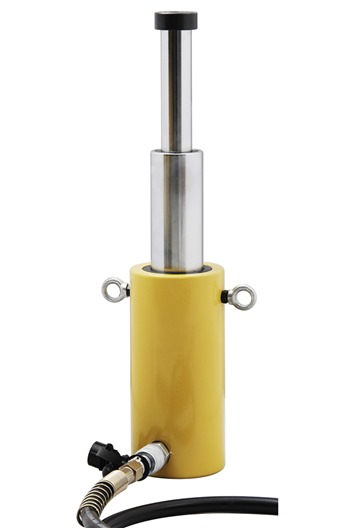

ActionRam Hydraulic Telescopic Cylinder 30.9-66.5tonne, 300mm Stroke

More From This Brand

Add to New List

• Product Info

• ActionRam Hydraulic Telescopic Cylinder 30.9-66.5tonne, 300mm Stroke

  For use where there is a minimum clearance for the insertion of a Cylinder and a very high lift is necessary

  Two stage lift

  Single acting, load return

  High strength alloy steel for durability

  Chrome plated piston resists wear and corrosion

  Female coupling

  Fitted with two Eyebolts which act as a carry handle

  Maximum pressure 700 Bar

  Recommended Hand Pump to operate is HHB-700S-3000CC

  Model: HHYG-30300D

  Capacity: 66.5tonne (Stage 1), 30.9tonne (Stage 2)

  Total stroke: 300mm (150mm Stage 1, 150mm Stage 2)

  Closed height: 304mm

  Outside diameter: 152mm

  Oil capacity: 2088cm³

  Weight: 45kg

• Specifications
• BrandActionRam

  Product Weight45kg

  Product ColourBlack & Yellow

  W.L.L.30tonne

  Stroke300mm

  Oil Capacity 2088cc

  Maximum Operating Pressure 700bar

  Closed Height304mm

  Acting Single Acting Cylinder

  Supplied With Eye Bolts

  Available for HireNo

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  Data SheetInstruction Manual
• Price Breaks
• ActionRam Hydraulic Telescopic Cylinder 30.9-66.5tonne, 300mm Stroke (Net Weight Per Item: 45.00kg):

  Quantity:

  1+

  (£521.87 inc VAT)
