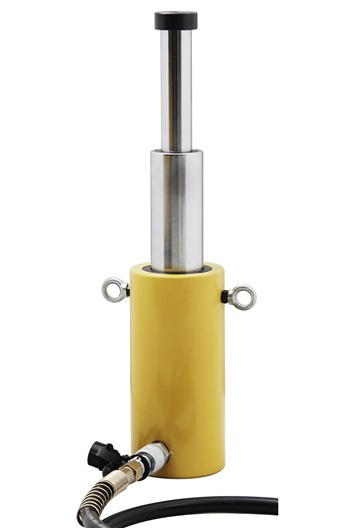

ActionRam Hydraulic Telescopic Cylinder 11.1-30.9tonne, 270mm Stroke

More From This Brand

Add to New List

• Product Info

• ActionRam Hydraulic Telescopic Cylinder 11.1-30.9tonne, 270mm Stroke

  For use where there is a minimum clearance for the insertion of a Cylinder and a very high lift is necessary

  Two stage lift

  Single acting, load return

  High strength alloy steel for durability

  Chrome plated piston resists wear and corrosion

  Female coupling

  Fitted with two Eyebolts which act as a carry handle

  Maximum pressure 700 Bar

  Recommended Hand Pump to operate this is HHB-700-2000CC

  Model: HHYG-10270D

  Capacity: 30.9tonne (Stage 1), 11.1tonne (Stage 2)

  Total stroke: 270mm (135mm Stage 1, 135mm Stage 2)

  Closed height: 250mm

  Outside diameter: 110mm

  Oil capacity: 810cm³

  Weight: 18kg

• Specifications
• BrandActionRam

  Product Weight18kg

  Product ColourBlack & Yellow

  W.L.L.10tonne

  Stroke270mm

  Oil Capacity 810cc

  Maximum Operating Pressure 700bar

  Closed Height 250mm

  Acting Single Acting Cylinder

  Available for HireNo

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  Data SheetInstruction Manual
