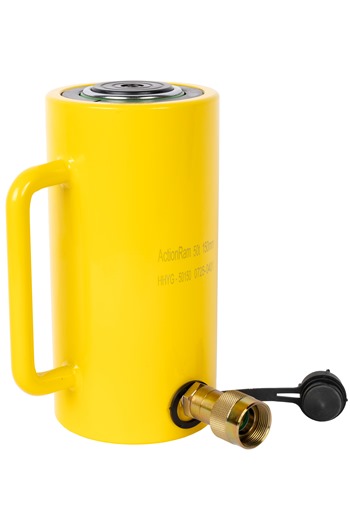

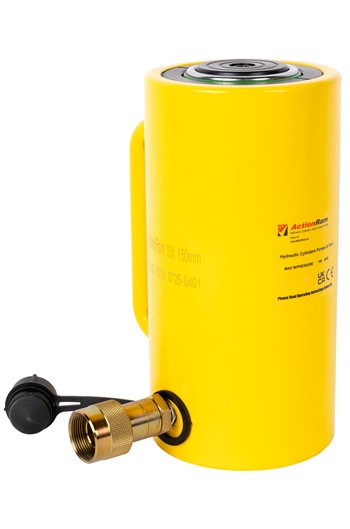

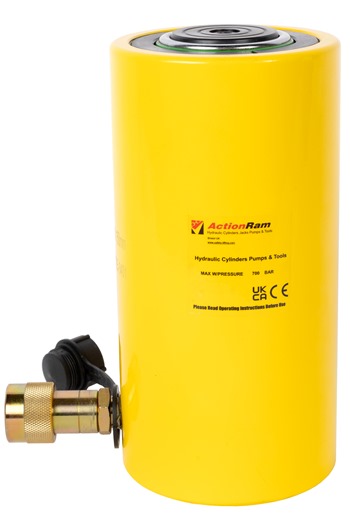

ActionRam 50tonne, 150mm Stroke Hydraulic Cylinder

More From This Brand

Add to New List

• Product Info

• ActionRam Hydraulic Cylinder

  Model: HHYG-50100

  Capacity: 50tonne

  Stroke: 150mm

  Open Height: 397mm

  Closed Height: 247mm

  Oil capacity: 1147cc

  Effective area: 70.8cm²

  Outside diameter: 123mm

  Chrome plated Cylinder and Ram

  Spring Return

  Maximum pressure 700BAR

  Fitted with female coupling

  Can be used in any position

  Fully tested before dispatch

  12 months warranty

  Recommended Hand Pump to operate this is HHB-700-2000cc

• Specifications
• BrandActionRam

  Product Weight23.5kg

  Product ColourBlack & Yellow

  W.L.L.50tonne

  Stroke150mm

  Inside Diameter / Bore 95mm

  Oil Capacity 1147cc

  Maximum Operating Pressure 700bar

  Open Height 397mm

  Closed Height 247mm

  Acting Single Acting Cylinder

  Available for HireYes

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  Data SheetInstruction Manual
