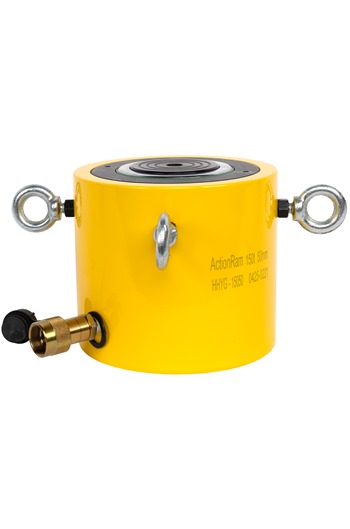

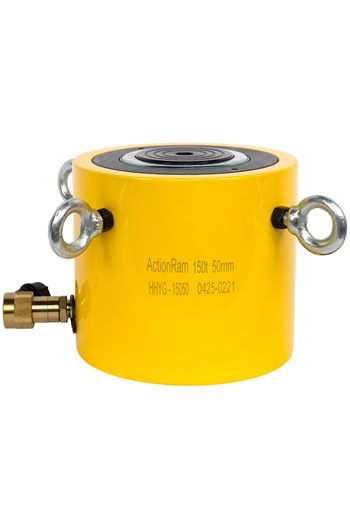

ActionRam 150tonne, 50mm Stroke Hydraulic Low Profile Cylinder

More From This Brand

Add to New List

• Product Info

• Low Height Hydraulic Cylinder

  Model: HHYG-15050

  Capacity: 150tonne

  Stroke: 50mm

  Open height: 232mm

  Closed height: 182mm

  Oil capacity: 1133cc

  Chrome plated Cylinder & Ram

  Spring return

  Maximum pressure 700 Bar

  Fitted with female coupling

  Can be used in any position

  Fully tested

  12 months warranty

  Recommended Hand Pump to operate this is HHB-700-2000cc

• Specifications
• BrandActionRam

  Product Weight41.1kg

  Product ColourBlack & Yellow

  W.L.L.150tonne

  Stroke50mm

  Inside Diameter / Bore 165mm

  Oil Capacity 1133cc

  Maximum Operating Pressure 700bar

  Open Height 232mm

  Closed Height182mm

  Acting Single Acting Cylinder

  Available for HireYes

  Warranty12 Months

  Custom Made ProductNo

  Included in Return Policy Yes

  Third Party Supplied No
  Additional Info
  Additional Information

  Data SheetInstruction Manual
• Price Breaks
• ActionRam 150tonne, 50mm Stroke Hydraulic Low Profile Cylinder (Net Weight Per Item: 41.10kg):

  Quantity:

  1+

  (£494.36 inc VAT)
