Aluminium Gantry
The Easy-Rig Aluminium Gantry is a complete, lightweight, fully customizable portable device designed for lifting loads
This Gantry is ideal for lifting applications such as confined spaces, silos, rooftops, lift-shafts, water treatment works, clean environments and many more

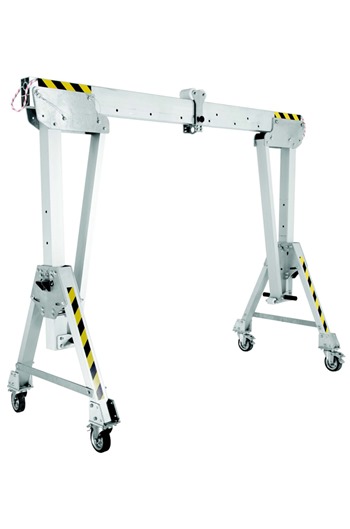

Supplied as two A-Frames and one Beam, this Gantry is lightweight and easy to transport

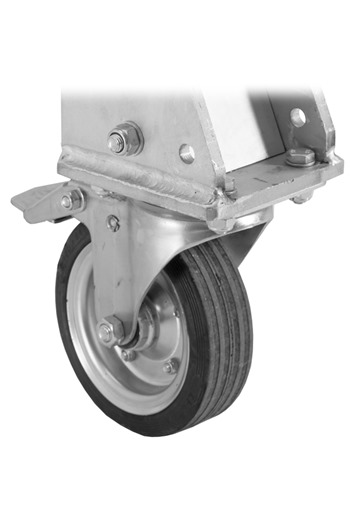

A-Frames are supplied with 160mm diameter 360° castors wih brake

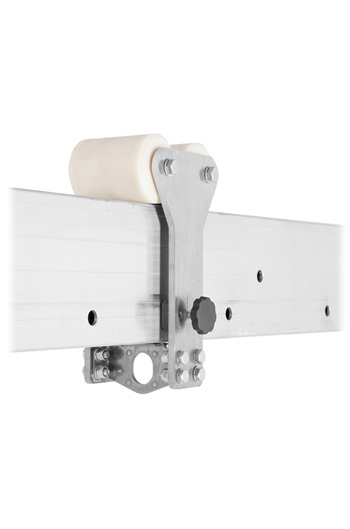

Beam is supplied with External Trolley for lifting applications and hitch for raising the support

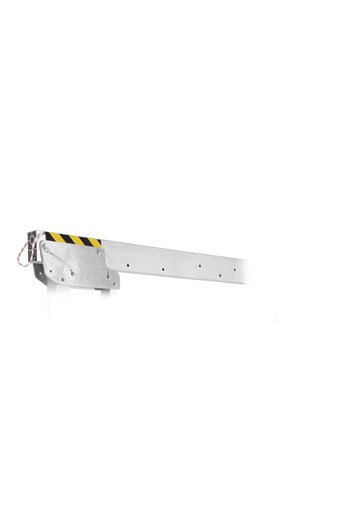

Beams are interchangeable which means longer or shorted beams can be added (always check the Instruction manual for WLL if the beam is changed over)
Can be used with manual Chainblock, Leverhoist, Electric Hoist or RUP502-T Lifting Winch
SWL: 3000kg
Support height: 2200-3600mm
Support height increment: 200mm
Beam length: 4mtrs
Working span: 2770mm
Bottom span: 3496mm
Total weight of Gantry: 153.8kg
Fully certified and tested
Full range of additional products available such as Parking Jacks, extra Trolleys - please contact us for more details
*Dispatched within 72 Hours From Time of Order*
