2000kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

More From This Brand

Add to New List

• Product Info

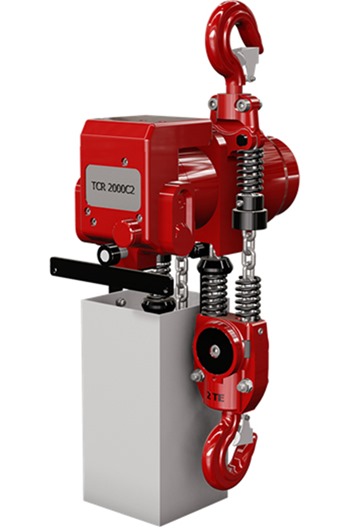

• RED ROOSTER TCR-2000/2 2000kg PNEUMATIC AIR LIFTING HOIST

  The TCR-2000/2 Air Hoist is the ideal choice for lifting applications that require fast lifting speeds, consistant use or simply where there is no access to power

  Powered by a compressed air feed means this Hoist has a 100% duty cycle so is perfect for constant use

  The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

  ATEX zone 2 specification

  Lifting heights: 3mtr to 10mtr (please contact us for longer lifting heights)

  Compact and lightweight body, aluminium housing

  1/2" Filter lubricator regulator c/w gauge must be used and can be supplied extra (please contact us for a price)

  Features:-

  • Model: TCR-2000/2
  • SWL: 2000kg
  • Lifting heights available: 3mtr to 10mtr (please contact us for longer lifting heights)
  • Chain falls: 2
  • Chain size: 7.1 x 21mm
  • Control type: Cord control (pendant control available - please contact us for details)
  • Lifting speed (full load): 3mtrs/min
  • Lifting speed (no load): 5.7mtrs/min
  • Lowering speed (with load): 5.2mtr/min
  • Air consumption: 25litres/second @ 6.3 Bar
  • Air connection: 1/2" BSP, min hose dia 1/2"
  • Working pressure: 6 Bar
  • Failsafe automatic internal disc brake
  • Upper & lower limit switches
  • ATEX zone 2 specification
  • Fully certified
  • PVC Chainbag included
  • Weight with 3mtr HOL:39.7kg
  • Weight per addtional metre HOL: 2.2kg



• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• TCR-2000/2 2000kg x 10mtr Air Hoist (Net Weight Per Item: 55.10kg):

  Quantity:

  1+

  (£5,375.98 inc VAT)
  TCR-2000/2 2000kg x 3mtr Air Hoist (Net Weight Per Item: 39.70kg):

  Quantity:

  1+

  (£5,039.98 inc VAT)
  TCR-2000/2 2000kg x 4mtr Air Hoist (Net Weight Per Item: 41.90kg):

  Quantity:

  1+

  (£5,087.98 inc VAT)
  TCR-2000/2 2000kg x 5mtr Air Hoist (Net Weight Per Item: 44.10kg):

  Quantity:

  1+

  (£5,135.98 inc VAT)
  TCR-2000/2 2000kg x 6mtr Air Hoist (Net Weight Per Item: 46.30kg):

  Quantity:

  1+

  (£5,183.98 inc VAT)
  TCR-2000/2 2000kg x 7mtr Air Hoist (Net Weight Per Item: 48.50kg):

  Quantity:

  1+

  (£5,231.98 inc VAT)
  TCR-2000/2 2000kg x 8mtr Air Hoist (Net Weight Per Item: 50.70kg):

  Quantity:

  1+

  (£5,279.98 inc VAT)
  TCR-2000/2 2000kg x 9mtr Air Hoist (Net Weight Per Item: 52.90kg):

  Quantity:

  1+

  (£5,327.98 inc VAT)
